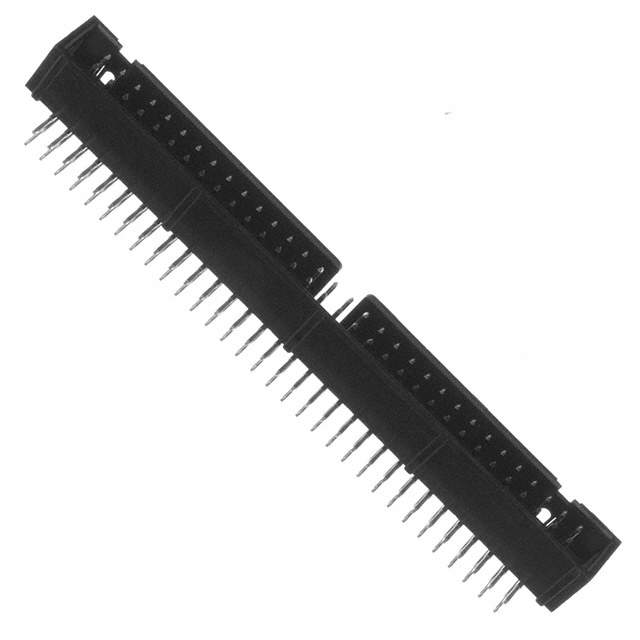

XG4C-6434 Real Image
Same model may have multiple batches, images only for reference.

XG4C-6434

Part No XG4C-6434
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER R/A 64POS 2.54MM / Connector Header Through Hole, Right Angle 64 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 64
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.323" (8.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4C-6434 BY OMZ,XG4C6434-ND,XG4C6434,OR971
Standard Package 30
Win Source Part Number 1001278-XG4C-6434
Ultra Librarian 3D Model Ultra Librarian XG4C-6434 CAD Model

Description

The XG4C-6434 by Omron Electronics Inc-EMC Div is a 64-position male pin header connector with a 2-row design. It is made of brass and nickel contact material, with a polybutylene terephthalate (PBT) and glass-filled insulation material.

  • Number of Positions: 64
  • Gender: Male
  • Number of Rows: 2
  • Contact Material: Brass, Nickel
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Features: Keying Slot
  • Connection Type: Board to Board or Cable
  • Pitch-Mating: 0.100" (2.54mm)
  • Temperature Range: -55°C ~ 105°C
  • Contact Finish-Mating: Gold, 5.90µin (0.150µm)
  • Contact Finish-Post: Tin, 78.7µin (2.00µm)
  • Current Rating: 3A
  • Voltage Rating: 300V
  • Mounting Type: Through Hole, Right Angle
  • Shrouding: Shrouded with 4 Walls
  • Packaging: Tray
  • Standard Package: 30 units
