Same model may have multiple batches, images only for reference.

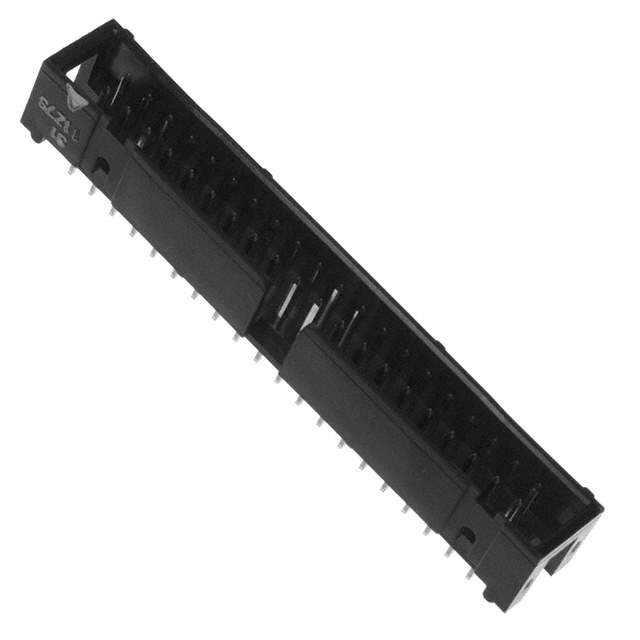

XG4C-4031 Real Image
Same model may have multiple batches, images only for reference.

XG4C-4031

Part No XG4C-4031
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 40POS 2.54MM / Connector Header Through Hole 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.480" (12.19mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 10.1mm, 19mm, 20.2mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4C-4031 BY OMZ,XG4C4031-ND,OR950,XG4C4031
Standard Package 50
Win Source Part Number 1113132-XG4C-4031
Ultra Librarian 3D Model Ultra Librarian XG4C-4031 CAD Model

Description

The Omron XG4C-4031 is a 40-position, board-to-board or cable connector with a pitch of 0.100" (2.54mm).

  • Positions: 40
  • Application: Board-to-Board or Cable
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Contact Plating: Gold
  • Contact Material: Brass with Nickel Plating
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • RoHS: Compliant
  • Temperature Range: -55°C to 105°C
