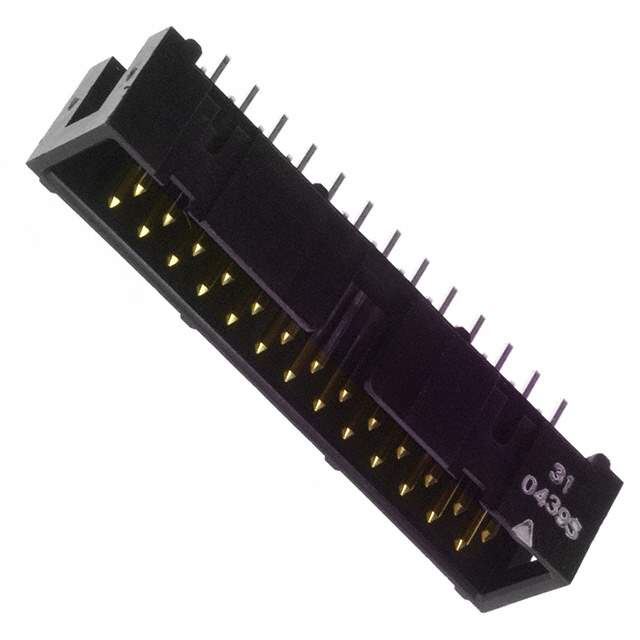

XG4C-2631 Real Image
Same model may have multiple batches, images only for reference.

XG4C-2631

Part No XG4C-2631
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 2.54MM / Connector Header Through Hole 26 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.480" (12.19mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 10.1mm, 19mm, 20.2mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4C-2631 BY OMZ,XG4C2631,XG4C2631-ND,OR901
Standard Package 70
Win Source Part Number 1000795-XG4C-2631
Ultra Librarian 3D Model Ultra Librarian XG4C-2631 CAD Model

Description

The XG4C series of rectangular connectors from Omron Electronics Inc-EMC Div are designed for board-to-board or cable applications.

  • Model: 1000795-XG4C-2631
  • Positions: 26
  • Pitch: 0.100 inches (2.54mm)
  • Keying Slot: Yes
  • Shrouding: shrouded, four-wall
  • Connector Type: male pin
  • Rows: two
  • Row Spacing: 0.100 inches (2.54mm)
  • Contact Finish: gold with a thickness of 5.90µin (0.150µm)
  • Wire Gauge: 28 AWG
  • Package: trays
  • Standard Package: 70 units
  • Ingress Protection: UL94 V-0
  • Voltage Rating: 300V
