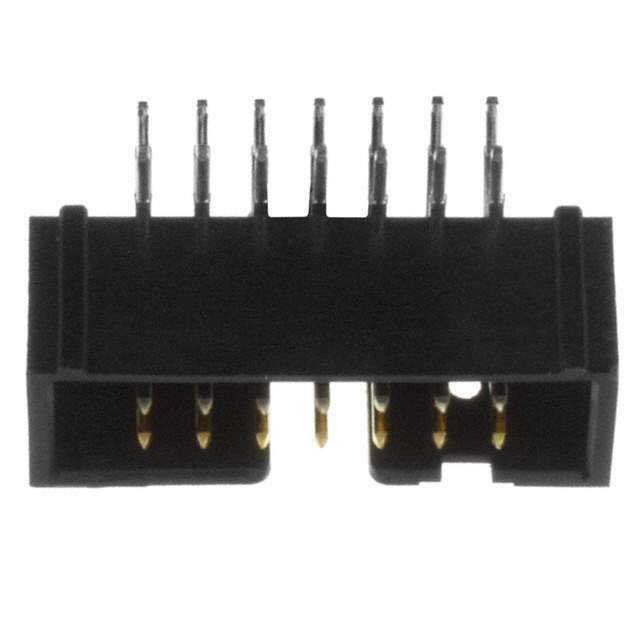

XG4C-1434

Name: XG4C-1434
Brand: Omron
SKU: 1155742
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	XG4C-1434
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 14POS 2.54MM / Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.323" (8.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	XG4C1434-ND,XG4C1434,OR985,2266-XG4C-1434,XG4C-1434 BY OMZ
Standard Package	120
Win Source Part Number	1155742-XG4C-1434
Ultra Librarian 3D Model	Ultra Librarian XG4C-1434 CAD Model

Alternative Products

Description

The Omron XG4C-1434 is a 14-position header connector with a pitch of 0.100" (2.54mm).

Number of Positions: 14
Pitch: 0.100" (2.54mm)
Style: Board-to-Board or Cable
Type: Shrouded (4 Walls)
Contact Finish (Mating): Gold, 5.90µin (0.150µm)
Contact Finish (Post): Tin, 78.7µin (2.00µm)
Mounting Type: Through-Hole, Right-Angle
Operating Temperature Range: -55°C to 105°C

The Omron XG4C-1434 is a reliable and efficient electronic component that is perfect for a wide range of applications.
