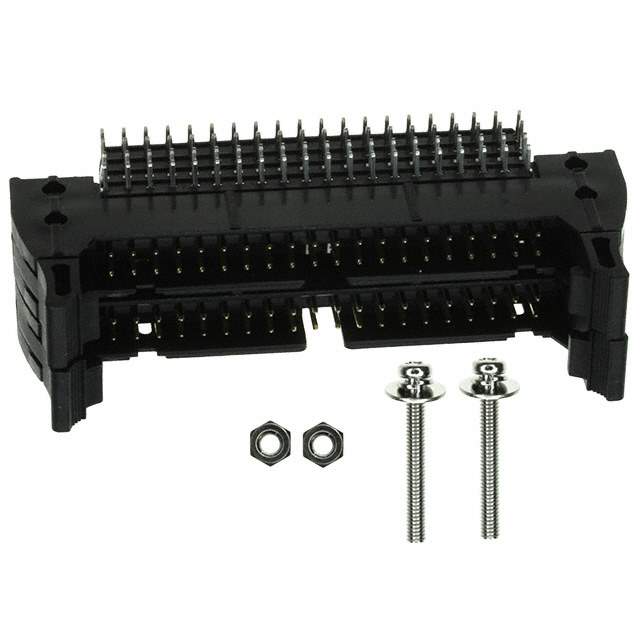

XG4A-4039-A Real Image
Same model may have multiple batches, images only for reference.

XG4A-4039-A

Part No XG4A-4039-A
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.54MM  /  Connector Header Through Hole, Right Angle 40, 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header, Stackable (2)
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40, 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange, Mounting Hardware
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4A4039A-ND,OR960,XG4A4039A
Standard Package 28
Win Source Part Number 1022773-XG4A-4039-A
Ultra Librarian 3D Model Ultra Librarian XG4A-4039-A CAD Model

Description

The Omron XG4A-4039-A is a rectangular connector with a male pin contact type.

  • Contact Type: Male Pin
  • Positions: 40
  • Rows: 2
  • Pitch-Mating: 0.100 inches
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness (Mating): 5.90μin
  • Contact Finish-Post: Tin
  • Contact Finish Thickness (Post): 78.7μin
  • Current Rating: 3A
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Application: Board to Cable/Wire
