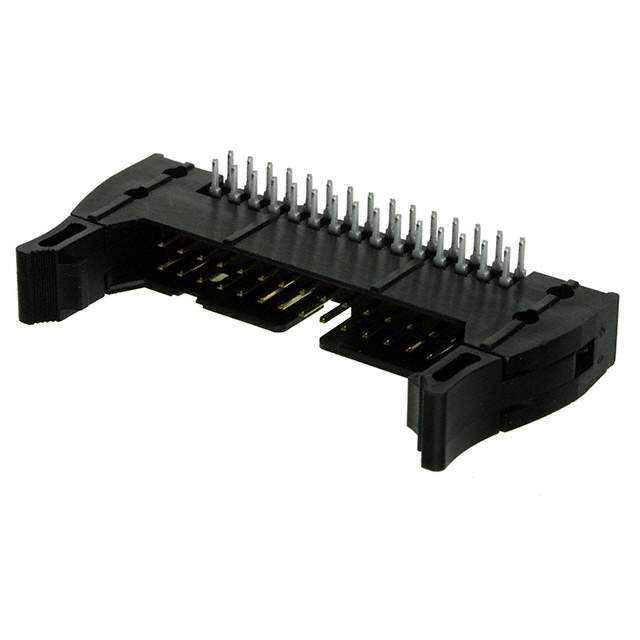

XG4A-3034

Part No XG4A-3034
Manufacturer Omron
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 30POS 2.54MM / Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-XG4A-3034,XG4A3034BYOMZ,XG4A3034,XG4A3034-ND,OR889,XG4A-3034 BY OMZ
Standard Package 50
Win Source Part Number 994564-XG4A-3034
Ultra Librarian 3D Model Ultra Librarian XG4A-3034 CAD Model

Description

The XG4A-3034 is a male pin header connector type manufactured by Omron Electronics Inc-EMC Div.

  • Category: Connectors and Interconnects, Rectangular Connectors - Headers, Male Pins
  • Series: XG4
  • Win Source Part Number: 994564-XG4A-3034
  • Mounting Type: Through Hole, Right Angle
  • Shroud: 4 Walls
  • Voltage Rating: 300V
  • Current Rating: 3A
