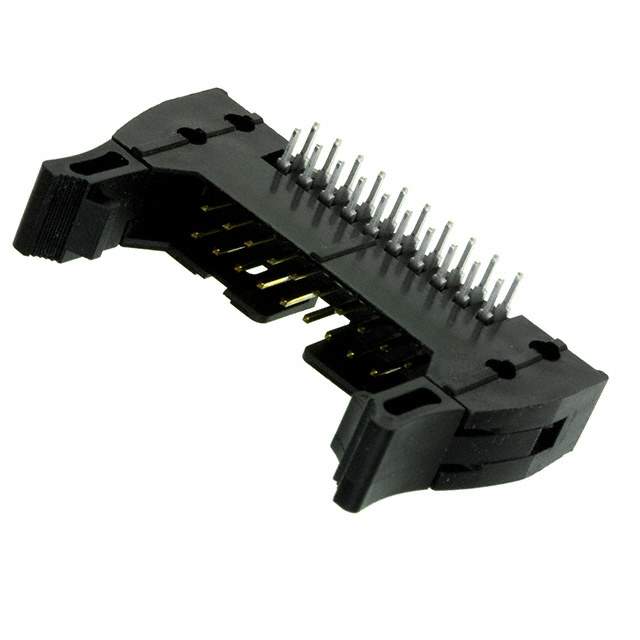

XG4A-2034

Name: XG4A-2034
Brand: Omron
SKU: 1023706
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XG4A-2034
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	XG4A2034,XG4A-2034 BY OMZ,OR886,XG4A2034-ND,XG4A2034BYOMZ
Standard Package	70
Win Source Part Number	1023706-XG4A-2034
Ultra Librarian 3D Model	Ultra Librarian XG4A-2034 CAD Model

Description

The XG4A-2034 is a 20-position male pin header connector from Omron.

Suitable for: Various electronic applications that require a reliable and secure connection.
Contact Finish: Gold
Current Rating: 3A
Package: Tray package containing 70 units
Pitch-Mating: 0.1 inches
ECCN: Compliant with ECCN
Insulation Material: Polybutylene terephthalate (PBT), glass-filled
