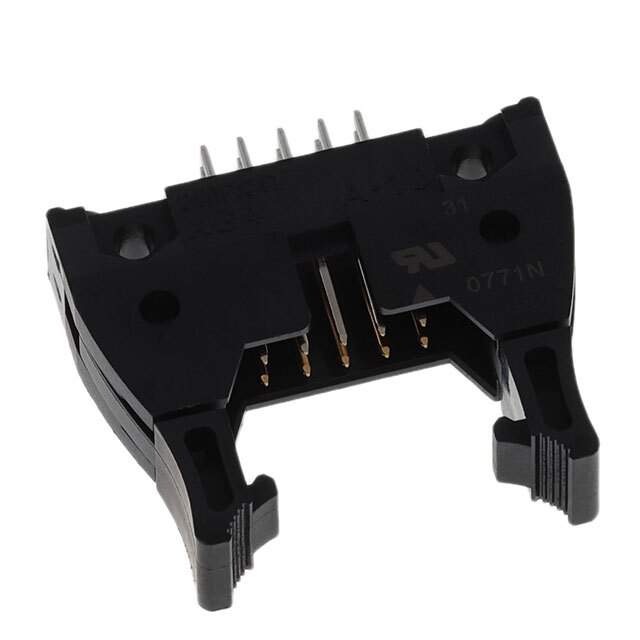

XG4A-1071

Name: XG4A-1071
Brand: Omron
SKU: 1000787
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XG4A-1071
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.657" (16.70mm)
Insulation Height	0.669" (17.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Mated Stacking Heights	23.5mm
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	XG4A-1071 BY OMZ,XG4A1071BYOMZ,XG4A1071,Z12429,XG4A-1071-ND
Standard Package	90
Win Source Part Number	1000787-XG4A-1071
Ultra Librarian 3D Model	Ultra Librarian XG4A-1071 CAD Model

Description

The XG4A-1071 is a male pin header connector with a keying slot and mounting flange feature.

Series: XG4
Number of Positions: 10
Voltage: 5V
Pitch Mating: 0.100" (2.54mm)
Contact Finish Mating: gold
Current Rating: 3A
Material Flammability Rating: UL94 V-0
Mounting Type: through-hole
Shrouding: shrouded - 4 wall
Type: rectangular connectors - headers, male pins
