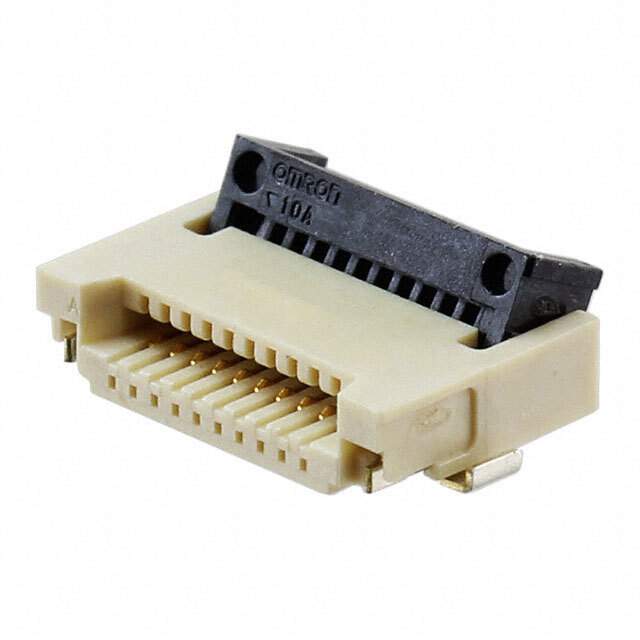

XF3M(1)-1015-1B Real Image
Same model may have multiple batches, images only for reference.

XF3M(1)-1015-1B

Part No XF3M(1)-1015-1B
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC 10POS 1.00MM R/A
Datasheet
XF3M(1)-1015-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FFC, Discrete Wire
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1119405-XF3M(1)-1015-1B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XF3M(1)-1015-1B CAD Model

Description

The Omron Electronics Inc-EMC Div XF3M(1)-1015-1B is a connector with 10 positions and a pitch of 0.039" (1.00mm).

  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.079" (2.00mm)
  • Flat Flex Type: FFC, discrete wire
  • Connector/Contact Type: contacts, top and bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: rotary lock and backlock
  • Housing Material: liquid crystal polymer (LCP), halogen free
  • Supply and Demand Status: balance
