Same model may have multiple batches, images only for reference.

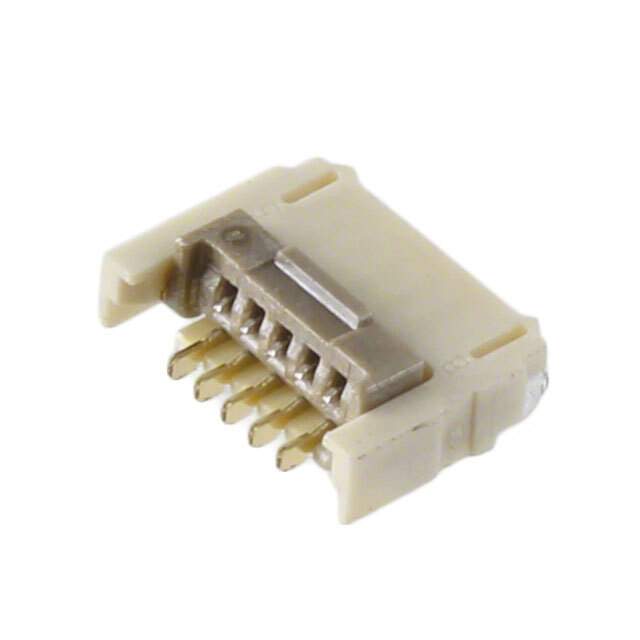

XF2W-0515-1A-R100 Real Image
Same model may have multiple batches, images only for reference.

XF2W-0515-1A-R100

Part No XF2W-0515-1A-R100
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector F 5 POS 0.5mm Solder RA SMD Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Liquid Crystal Polymer, Polymer
Contact Plating Gold
Current Rating 500 mA
Flammability Rating UL94 V-0
Housing Material Polymer
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Pins 5
Number of Positions 5
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 508 µm
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1000780-XF2W-0515-1A-R100
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian XF2W-0515-1A-R100 CAD Model

Description

The Omron XF2W-0515-1A-R100 is a 5-position, right angle FFC/FPC connector with a pitch of 508 µm.

  • Positions: 5
  • Orientation: right angle
  • Type: FFC/FPC connector
  • Pitch: 508 µm
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Housing Material: polymer
  • Actuator Material: liquid crystal polymer and polymer
  • Contact Plating: gold
  • RoHS: compliant
  • Operating Temperatures: ranging from -30 °C to 85 °C
  • Packaging: tape and reel
  • Supply: currently facing a shortage
