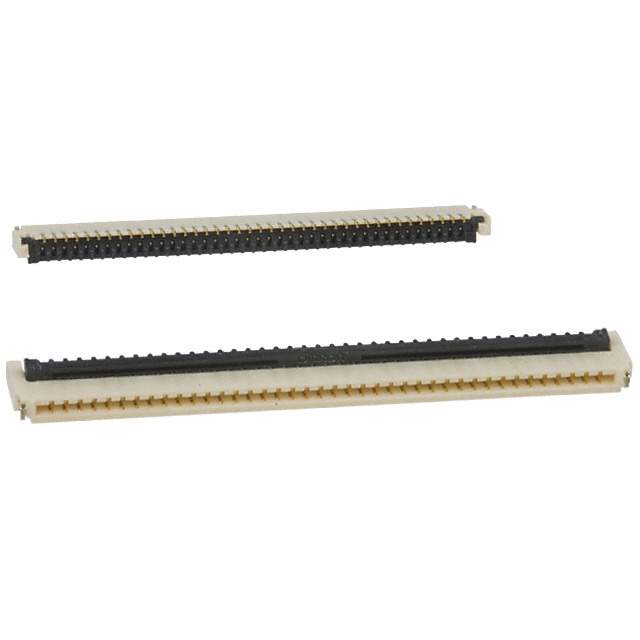

XF2U-2415-3A

Name: XF2U-2415-3A
Brand: Omron
SKU: 699412
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XF2U-2415-3A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	XF2U-0415-3A \| CONN FPC 24POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel
Status	Obsolete
Flat Flex Type	FPC
Mounting Style	SMT, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	24
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Dielectric Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90μin (0.150μm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1282100-XF2U-2415-3A
Manufacturer Homepage	www.omron.com/index3.html
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian XF2U-2415-3A CAD Model

Description

The Omron XF2U-2415-3A is a 24-position FFC/FPC connector with a pitch of 0.020" (0.50mm) and a right-angle mounting style.

Locking Feature: Rotary lock and backlock
Termination: Solder
Voltage Rating: 50V
Current Rating: 0.5A
Contact Material: Copper alloy
Contact Finish: Gold
Contact Finish Thickness: 5.90μin (0.150μm)
Operating Temperature Range: -30°C to 85°C
Dielectric Material: Liquid crystal polymer (LCP)
Status: Obsolete
