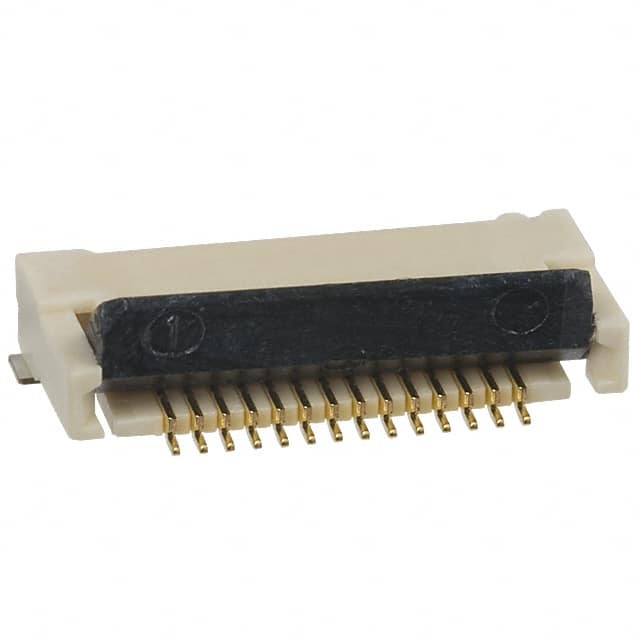

XF2M-2215-1A-R100

Name: XF2M-2215-1A-R100
Brand: Omron
SKU: 1000776
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF2M-2215-1A-R100
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 22POS 0.50MM R/A / 22 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Omron Electronics Inc-EMC Div
Series	XF2M
Package	Tape & Reel (TR)
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	22
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Base Product Number	XF2M
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	XF2M-2215-1A-R100 BY OMZ,XF2M-2215-1A-R100 BYOMZ,XF2M22151AR100,XF2M22151AR100BYOMZ
Standard Package	100
Win Source Part Number	1000776-XF2M-2215-1A-R100
Ultra Librarian 3D Model	Ultra Librarian XF2M-2215-1A-R100 CAD Model

Alternative Products

Description

The Omron Electronics Inc-EMC Div XF2M-2215-1A-R100 is a 22-position FFC, FPC (Flat Flexible) connector that has a pitch of 0.020 inches (0.50mm).

Number of Positions: 22
Type: FFC, FPC (Flat Flexible) connector
Pitch: 0.020 inches (0.50mm)
Contact Finish: gold
Contact Finish Thickness: 5.90μin (0.150μm)
Voltage Rating: 50V
Current Rating: 0.5A
Height above Board: 0.083 inches (2.10mm)
Mounting: surface mount, right-angle
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Temperatures: ranging from -30 degrees Celsius to 85 degrees Celsius
