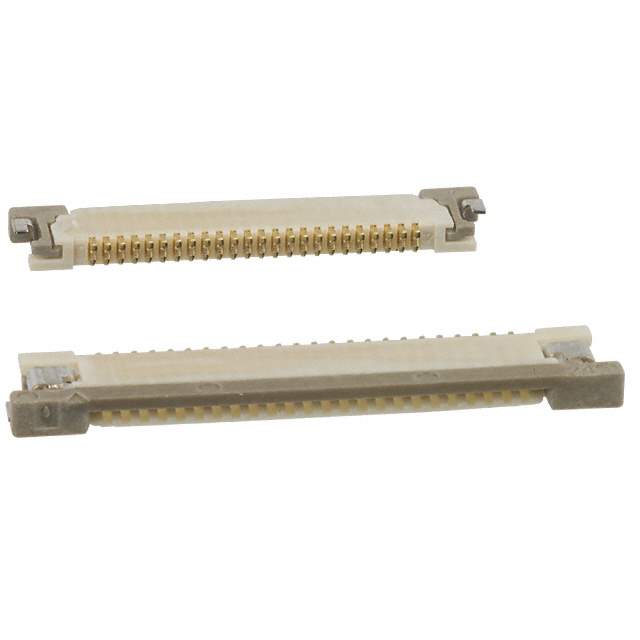

Same model may have multiple batches, images only for reference.

XF2L-2435-1A

Name: XF2L-2435-1A
Brand: Omron
SKU: 409729
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF2L-2435-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 24POS 0.50MM R/A
Datasheet	XF2L-2435-1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	24
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.047" (1.20mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-30°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Contact Finish Thickness	5.9μin (0.15μm)
Housing Color	Natural
Actuator Color	Brown
Mating Cycles	20
Win Source Part Number	043946-XF2L-2435-1A
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian XF2L-2435-1A CAD Model

Description

The Omron Electronics Inc-EMC Div 043946-XF2L-2435-1A connector is a Zero Insertion Force (ZIF) connector with a pitch of 0.020" (0.50mm) and 24 positions.

Pitch: 0.020" (0.50mm)
Positions: 24
Voltage Rating: 50V
Current Rating: 0.5A
Popularity: Medium
Locking Feature: Slide Lock
Material: Liquid Crystal Polymer (LCP)
Halogen Free: Yes
Housing Color: Natural
Mounting Style: Surface Mountable, Right Angle
