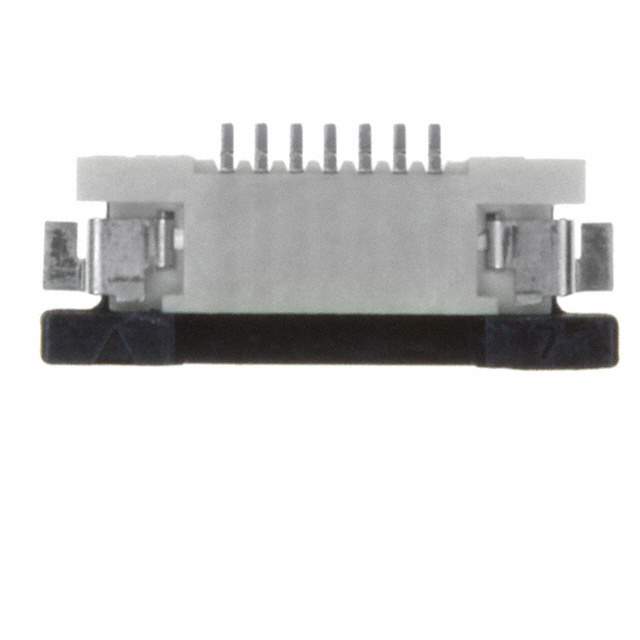

XF2L-0725-1A Real Image
Same model may have multiple batches, images only for reference.

XF2L-0725-1A

Part No XF2L-0725-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 7POS 0.50MM R/A / 7 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
XF2L-0725-1A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2L
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 7
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4051
Other Names XF2L-0725-1A BY OMZ,XF2L07251ABYOMZ,2266-XF2L-0725-1A,XF2L07251A,OR750TR,OR750DKR,OR750CT
Standard Package 3,000
Win Source Part Number 981775-XF2L-0725-1A
Ultra Librarian 3D Model Ultra Librarian XF2L-0725-1A CAD Model

Description

The Omron XF2L Series FFC/FPC Connector is a high-quality electronic component that is designed for use in various industrial and commercial applications.

  • Feature: Zero Insertion Force (ZIF)
  • Mounting Type: Surface Mount, Right-Angle
  • Pitch: 0.020" (0.50mm)
  • Positions: 7
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90µin (0.150µm)
