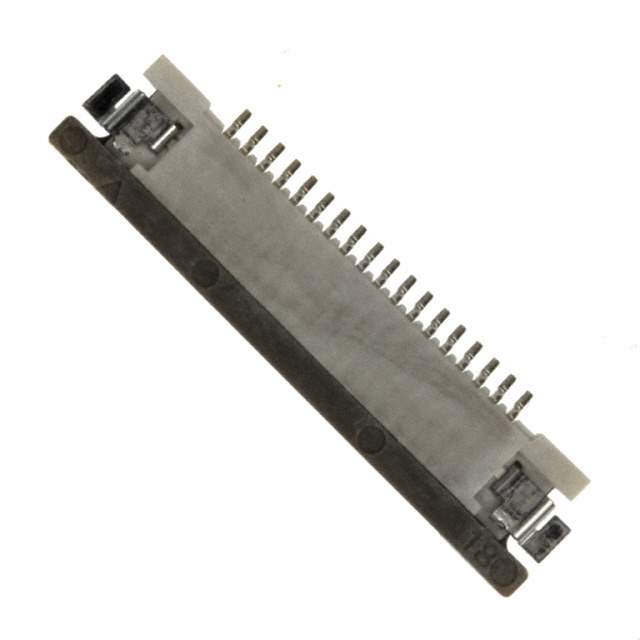

XF2L-1835-1A

Part No XF2L-1835-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description ZIF Slide-locking Connector (0.5-mm pitch) | CONN FPC BOTTOM 18POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Status Obsolete
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 18
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90μin (0.150μm)
Housing Color Natural
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1282093-XF2L-1835-1A
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XF2L-1835-1A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2L-1835-1A is an 18 position, 0.020" (0.50mm) pitch, SMT, right angle mounting style connector with zero insertion force (ZIF) feature.

  • Positions: 18
  • Pitch: 0.020" (0.50mm)
  • Mounting Style: SMT, right angle
  • Feature: zero insertion force (ZIF)
  • Termination: solder
  • Contact Finish: gold
  • Contact Finish Thickness: 5.90μin (0.150μm)
  • Connector/Contact Type: contacts, bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: slide lock
  • Cable End Type: straight
  • Actuator Material: liquid crystal polymer (LCP), halogen free
  • Housing Color: natural
  • Dielectric Material: liquid crystal polymer (LCP), halogen free
  • Category: connector and interconnect
  • Popularity: medium
