XF2J102412AR100BYOMZ Omron
Same model may have multiple batches, images only for reference.

XF2J102412AR100BYOMZ

Part No XF2J102412AR100BYOMZ
Manufacturer Omron
Catalog Flat Flex Cables (FFC, FPC)
Datasheet
XF2J102412AR100BYOMZ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2J
Package Bulk
Product Status Obsolete
Flat Flex Type FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 10
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.163" (4.15mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1316054-XF2J102412AR100BYOMZ
Ultra Librarian 3D Model Ultra Librarian XF2J102412AR100BYOMZ CAD Model

Description

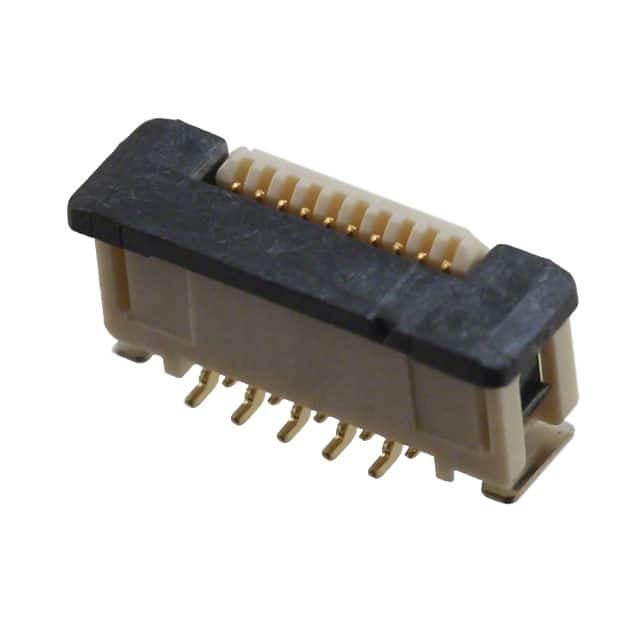

The Omron XF2J102412AR100BYOMZ is a zero insertion force (ZIF) FPC connector that comes with a slide lock feature.

  • Positions: 10
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90µin (0.150µm)
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Housing Material: Polyamide (PA46), Nylon 4/6
  • Housing Color: Natural
  • Height Above Board: 0.163" (4.15mm)
  • Mounting Type: Surface Mount Technology (SMT)
  • Mating Cycle: 30
  • Operating Temperature: -30°C ~ 85°C
  • Product Status: Obsolete
