Same model may have multiple batches, images only for reference.

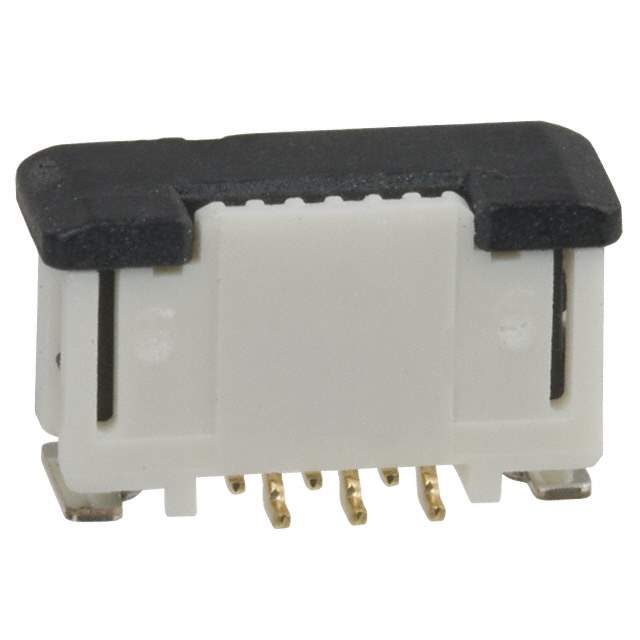

XF2J102411AR100 Real Image
Same model may have multiple batches, images only for reference.

XF2J102411AR100

Part No XF2J102411AR100
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FPC Connector SKT 10 POS 1mm Solder ST SMD Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Copper
Contact Plating Gold
Contact Resistance 30 mΩ
Current Rating 500 mA
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Polyamide
Length 10 mm
Max Current Rating 500 mA
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 1 mm
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1000772-XF2J102411AR100
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian XF2J102411AR100 CAD Model

Description

The Omron 939540 is a 10-position, 1-row, straight receptacle FFC/FPC connector with a pitch of 1 mm.

  • Number of Positions: 10
  • Number of Rows: 1
  • Orientation: straight
  • Type: FFC/FPC connector
  • Pitch: 1 mm
  • Contact Material: copper
  • Contact Plating: gold
  • Contact Resistance: 30 mΩ
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Housing Material: polyamide
  • Length: 10 mm
  • Mount: surface mount
  • RoHS: compliant
  • Minimum Operating Temperature: -30 °C
  • Maximum Operating Temperature: 85 °C
  • Supply: in shortage
  • Popularity: low
