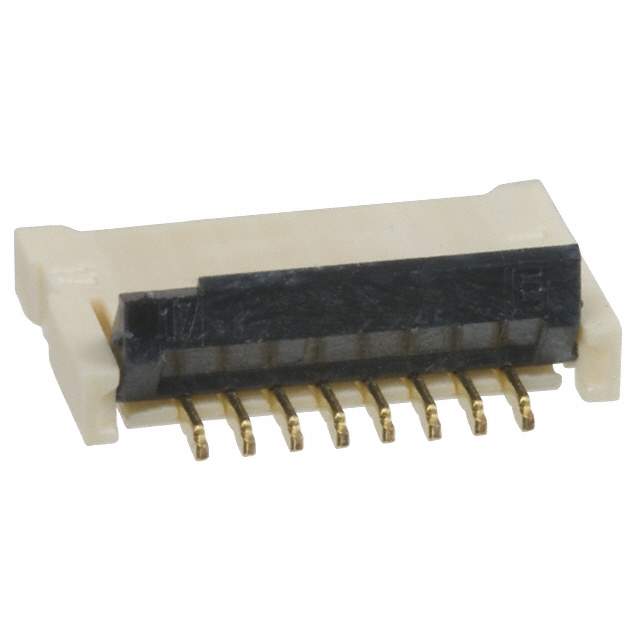

XF2B-1745-31A Real Image
Same model may have multiple batches, images only for reference.

XF2B-1745-31A

Part No XF2B-1745-31A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 17POS 0.30MM R/A / 17 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
XF2B-1745-31A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2B
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 17
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XF2B-1745-31A BY OMZ,OR694DKR,OR694TR,XF2B174531A,OR694CT,XF2B-17453-1A,XF2B174531ABYOMZ,2266-XF2B-1745-31A
Standard Package 1,500
Win Source Part Number 970486-XF2B-1745-31A
Ultra Librarian 3D Model Ultra Librarian XF2B-1745-31A CAD Model

Description

The XF2B-1745-31A connector is a top and bottom contact, rotary lock, backlock, solder termination connector.

  • Series: XF2B
  • Type: FFC, FPC (Flat Flexible) Connectors
  • Positions: 17
  • Pitch: 0.012" (0.30mm)
  • Material: Liquid crystal polymer (LCP)
  • Halogen-Free: Yes
  • Operating Temperature: -30°C to 85°C
  • Packaging: Tape and Reel
  • Quantity per Package: 1,500
