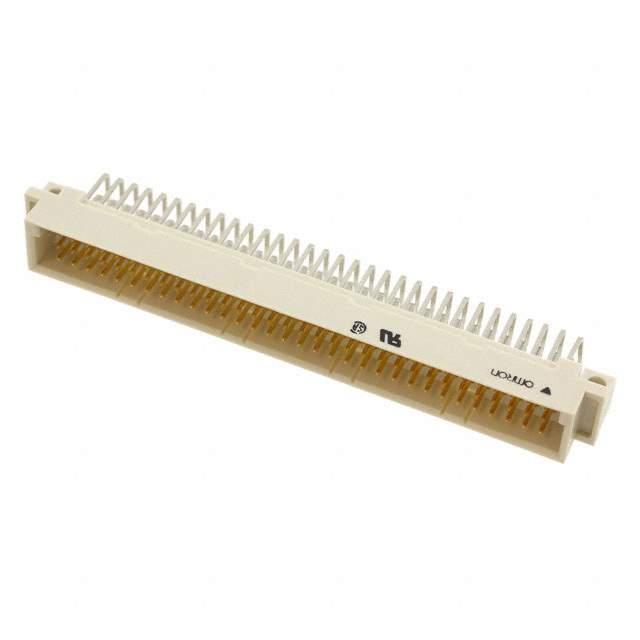

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Omron Electronics Inc-EMC Div
Series XC5
Package Bulk
Product Status Obsolete
Connector Type Plug, Male Pins
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336785-XC5C-9622
Ultra Librarian 3D Model Ultra Librarian XC5C-9622 CAD Model

Description

The Omron XC5C-9622 is a backplane connector with 96 positions and a pitch of 0.100" (2.54mm). Omron

  • Positions: 96
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Plug with Male Pins
  • Termination: Solder
  • Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C ~ 125°C
  • Series: XC5
  • Application: DIN 41612
  • Status: Obsolete
  • Packaging: Bulk
  • Standard Package: 30
