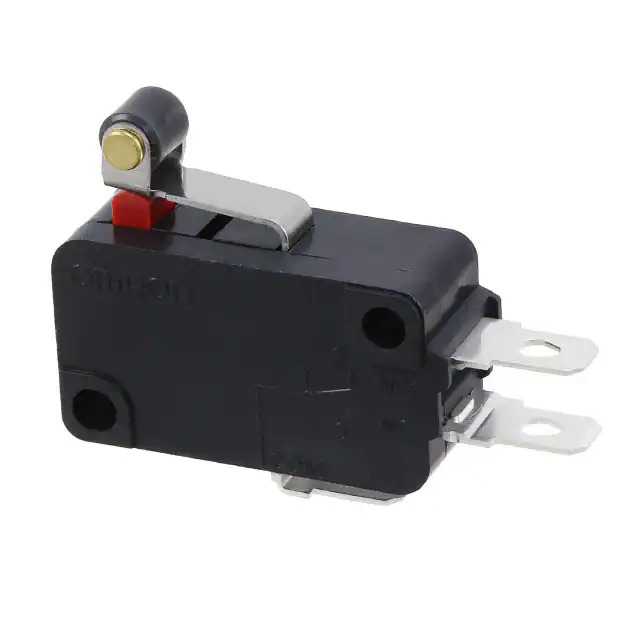

V-165-1A5 Omron
Same model may have multiple batches, images only for reference.

V-165-1A5

Part No V-165-1A5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 16A 250V / Switch SPDT Chassis Mount
Datasheet
V-165-1A5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series V
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 16A (AC), 600mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Features -
Operating Force 240gf
Release Force 50gf
Operating Position 0.815" (20.7mm)
Pretravel 0.063" (1.6mm)
Differential Travel 0.025" (0.6mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -25°C ~ 80°C
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Base Product Number V-165
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 1376161-V-165-1A5
Ultra Librarian 3D Model Ultra Librarian V-165-1A5 CAD Model

Description

The Omron V-165-1A5 is a limit switch suitable for various applications.

  • Temperature Range: -25°C to 80°C
  • Ingress Protection Rating: IP40
  • Current Rating: 16A (AC) and 600mA (DC)
  • Circuit: SPDT
  • Switch Function: on-mom
  • Voltage Rating: 250VAC and 125VDC
  • Actuator Type: lever and roller
  • Mounting Type: chassis mount
  • Series: V series from Omron
