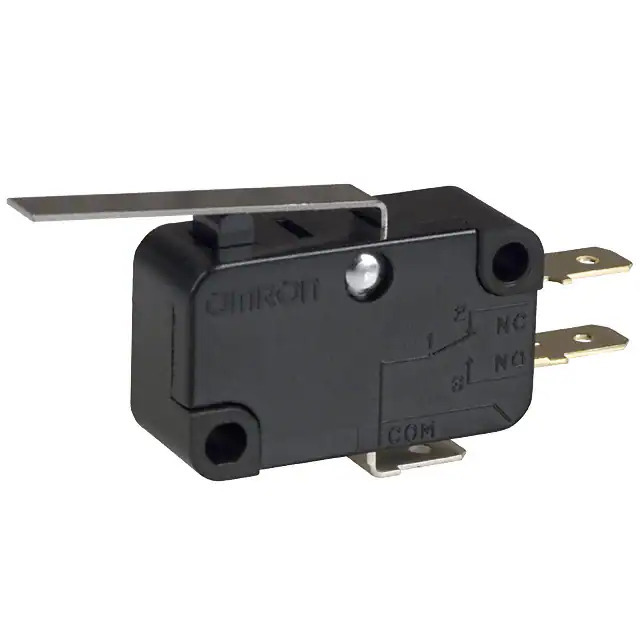

V-15G2-1C25-K Omron
Same model may have multiple batches, images only for reference.

V-15G2-1C25-K

Part No V-15G2-1C25-K
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 250V / Switch SPDT Chassis Mount
Datasheet
V-15G2-1C25-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series V
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 100mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Features -
Operating Force 125gf
Release Force 14gf
Operating Position 0.600" (15.2mm)
Pretravel 0.157" (4.0mm)
Differential Travel 0.060" (1.5mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -25°C ~ 80°C
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Base Product Number V-15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 1376339-V-15G2-1C25-K
Ultra Librarian 3D Model Ultra Librarian V-15G2-1C25-K CAD Model

Description

The V-15G2-1C25-K is a limit switch from Omron Electronics Inc-EMC Div.

  • Series: V
  • Temperature Range: -25°C to 80°C
  • Current Rating (AC): 15A (AC)
  • Current Rating (DC): 100mA (DC)
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating (AC): 250VAC (AC)
  • Voltage Rating (DC): 125V (DC)
  • Actuator Type: Lever and Straight
  • Termination Style: Quick Connect
  • Mechanical Life: 50,000,000 Cycles
  • Electrical Life: 100,000 Cycles
  • Mounting: Chassis Mount
  • Ingress Protection: IP40
