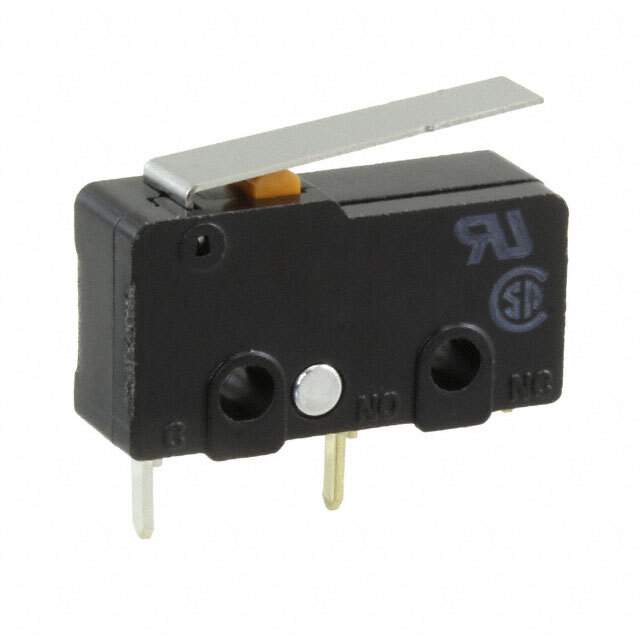

SS-5GL-3D Real Image
Same model may have multiple batches, images only for reference.

SS-5GL-3D

Part No SS-5GL-3D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 5A 125V / Switch SPST-NO Through Hole
Datasheet
SS-5GL-3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL3DBYOMI,SS5GL3D,2266-SS-5GL-3D,-SS-5GL-3D,Z5086
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233504-SS-5GL-3D
Ultra Librarian 3D Model Ultra Librarian SS-5GL-3D CAD Model

Description

The Omron SS-5GL-3D limit switch is designed for SPST-NO circuit with off-mom switch function.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever, Straight
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Differential Travel: 0.031” (0.8mm)
  • Overtravel: 0.047” (1.2mm)
  • Mounting Type: Through Hole
  • Temperature Range: -25°C to 85°C
  • Ingress Protection: IP40
  • Current Rating: 5A (AC)
  • Voltage Rating: 125V (AC)
  • Packaging: Bulk
  • Standard Package: 500
