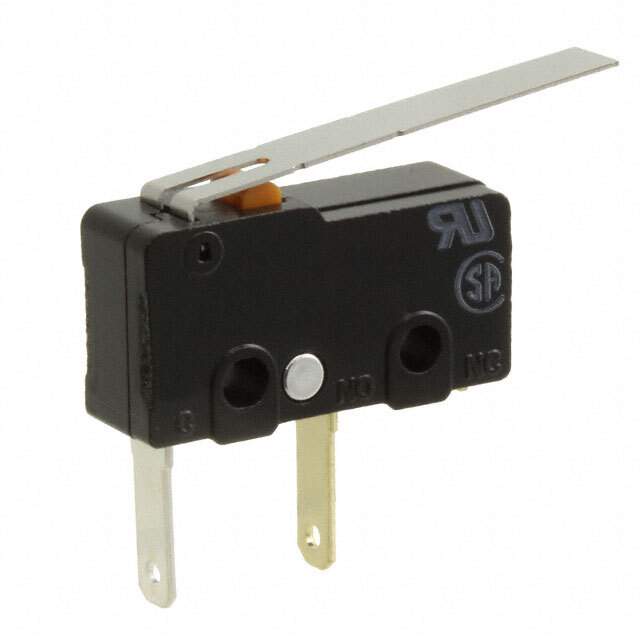

SS-5FL111-3T Real Image
Same model may have multiple batches, images only for reference.

SS-5FL111-3T

Part No SS-5FL111-3T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 3A 250V / Switch SPST-NO Chassis Mount
Datasheet
SS-5FL111-3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 3A (AC), 5A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 55gf
Release Force 1.020gf
Differential Travel 0.118" (3.0mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
Base Product Number SS-5
Other Names Z6374,SS5FL1113T
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233515-SS-5FL111-3T
Ultra Librarian 3D Model Ultra Librarian SS-5FL111-3T CAD Model

Description

The SS-5FL111-3T limit switch from Omron Electronics Inc-EMC Div is a high-quality component that is designed to provide reliable performance in a wide range of applications.

  • Termination Style: Quick Connect
  • Ingress Protection: IP40
  • Voltage Rating: 250 V AC and 30 V DC
  • Standard Package: 500
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever Straight
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 100,000 cycles
  • Operating Force: 55gf
  • Release Force: 1.020gf
  • Differential Travel: 0.118"
  • Overtravel: 0.040"
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C to 85°C
