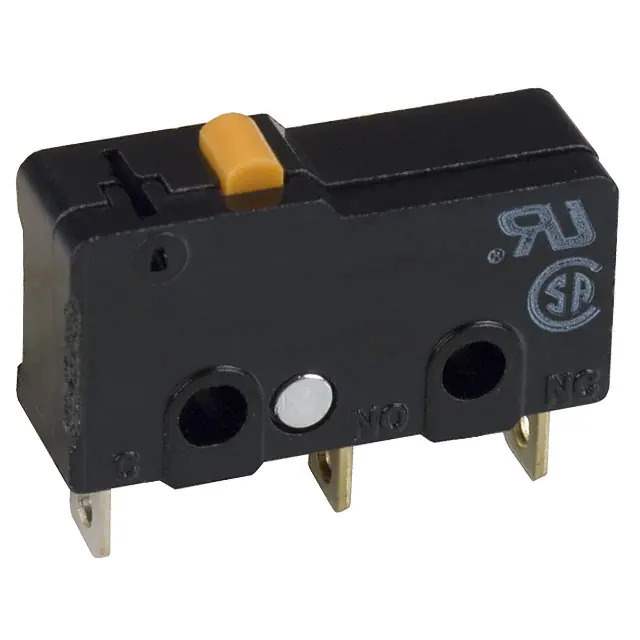

SS-5 Real Image
Same model may have multiple batches, images only for reference.

SS-5

Part No SS-5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
SS-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series SS
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Operating Position 0.330" (8.4mm)
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Standard Package 500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 849960-SS-5
Ultra Librarian 3D Model Ultra Librarian SS-5 CAD Model

Description

The SS-5 is a limit switch. It is manufactured by Omron.

  • Termination Style: Solder Lug
  • Ingress Protection: IP40
  • Voltage Rating: 125V AC
  • Current Rating: 5A
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round
  • Operating Force: 150gf
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature: -25°C to 85°C
