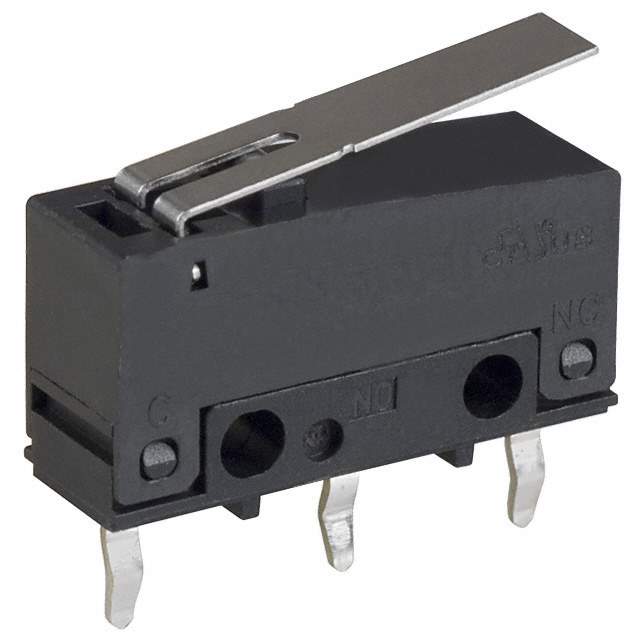

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-3GL
Other Names SS3GLPDBYOMZ,-SS-3GLPD,SS-3GLPD BY OMZ,SW770,SS3GLPD
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233428-SS-3GLPD
Ultra Librarian 3D Model Ultra Librarian SS-3GLPD CAD Model

Description

The SS-3GLPD is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Circuit Configuration: SPDT
  • Current Rating: 3A (AC/DC)
  • Switch Function: On-Mom
  • Actuator Type: Lever, straight
  • Operating Force: 51gf
  • Mechanical Life: 1,000,000 cycles
  • Ingress Protection Rating: IP40
  • Mounting: Through Hole
  • Temperature Range: -25°C to 85°C
  • Package: Bulk
  • Standard Package: 500
  • Supply and Demand Status: balanced
