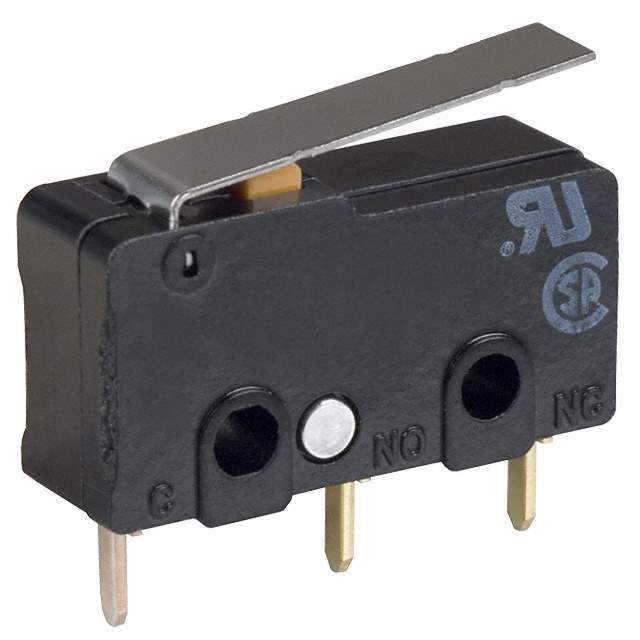

SS-10GLD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.040" (1.0mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS10GLD,SS10GLDBYOMI,SS-10GLD,SW1468,SS-10GLD BY OMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233479-SS-10GLD
Ultra Librarian 3D Model Ultra Librarian SS-10GLD CAD Model

Description

The Omron SS-10GLD is a limit switch that has a SPDT circuit and an on-mom switch function.

  • Voltage Rating: 250V AC
  • Current Rating: 10A (AC)
  • Mounting Type: Through-Hole
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
  • Classification: EAR99
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 50,000 cycles
  • Actuator Type: Lever, Straight
  • Operating Force: 50gf
