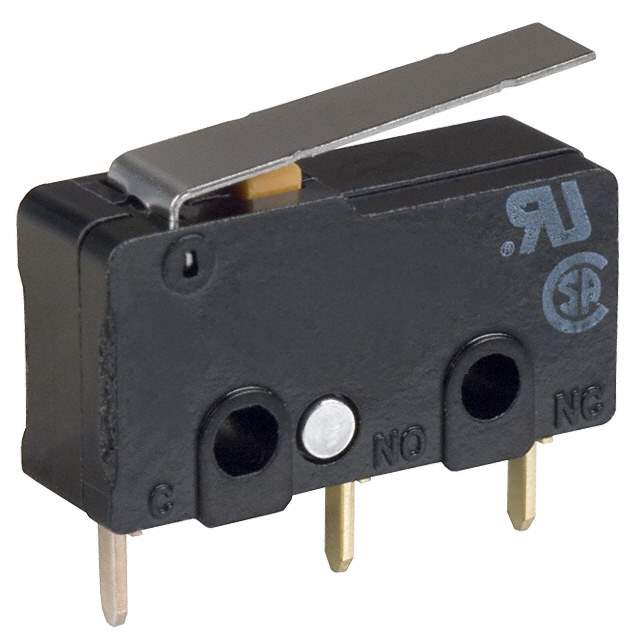

SS-10GLD-T Real Image
Same model may have multiple batches, images only for reference.

SS-10GLD-T

Part No SS-10GLD-T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 250V  /  Switch SPDT Through Hole
Datasheet
SS-10GLD-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.040" (1.0mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names Z12983,SS-10GLD-T,SS10GLDT
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233562-SS-10GLD-T
Ultra Librarian 3D Model Ultra Librarian SS-10GLD-T CAD Model

Description

The SS-10GLD-T series limit switch from Omron Electronics Inc-EMC Div is a bulk packaged component with PC Pin termination style and straight lever actuator type.

  • Termination Style: PC Pin
  • Packaging: Bulk
  • Standard Package: 500
  • ECCN: EAR99
  • Switch Function: On-Mom
  • Circuit: SPDT
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Differential Travel: 0.040" (1.0mm)
  • Overtravel: 0.039" (1.0mm)
  • Operating Position: 0.345" (8.8mm)
  • Mounting Type: Through Hole
  • Temperature Range: -25°C ~ 85°C
  • Actuator Type: Straight lever
  • HTSUS Code: 8536.50
