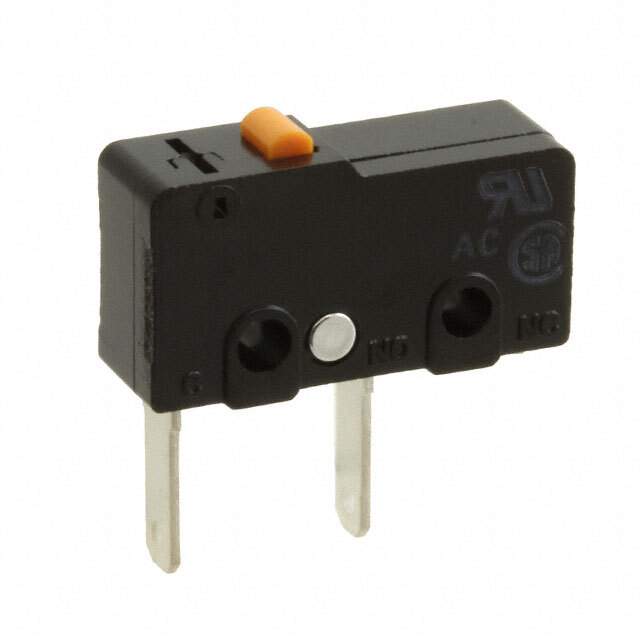

SS-10-3T Real Image
Same model may have multiple batches, images only for reference.

SS-10-3T

Part No SS-10-3T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 10A 250V  /  Switch SPST-NO Chassis Mount
Datasheet
SS-10-3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS103TBYOMI,SS103T,Z5062,-SS-10-3T
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233516-SS-10-3T
Ultra Librarian 3D Model Ultra Librarian SS-10-3T CAD Model

Description

The Omron Electronics Inc-EMC Div SS series limit switch is a SPST-NO circuit switch with an Off-Mom switch function.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Actuator Type: Round (Pin Plunger)
  • Mounting Type: Chassis Mount
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 150gf
  • Release Force: 25gf
  • Pretravel: 0.6mm
  • Differential Travel: 0.12mm
  • Overtravel: 0.4mm
  • Operating Position: 8.4mm
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
