Same model may have multiple batches, images only for reference.

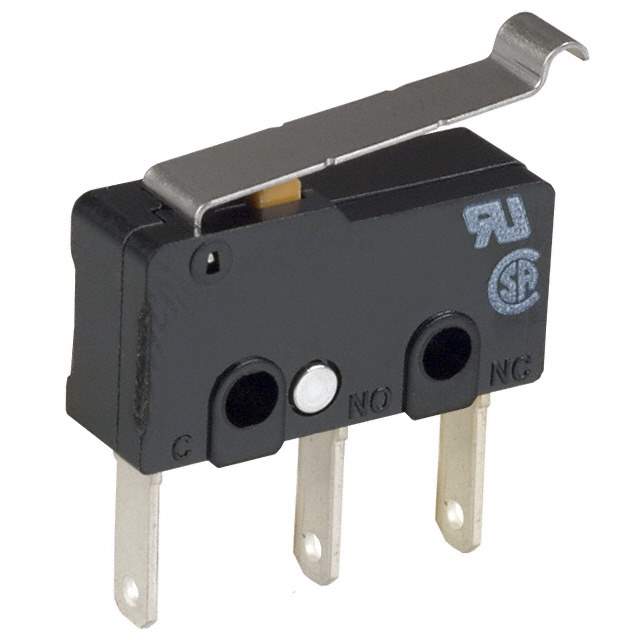

SS-01GL13-T Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13-T

Part No SS-01GL13-T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Chassis Mount
Datasheet
SS-01GL13-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names -SS-01GL13-T,-SS-01GL13T,-SS-01GL13T,SW1464,SS-01GL13T,SS01GL13T,SS-01GL13-T
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233581-SS-01GL13-T
Ultra Librarian 3D Model Ultra Librarian SS-01GL13-T CAD Model

Description

The SS-01GL13-T limit switch from Omron Electronics Inc-EMC Div is a high-quality component that is designed to provide reliable performance in a wide range of applications.

  • Termination Style: Quick Connect
  • Ingress Protection: IP40
  • Voltage Rating: 125 V AC and 30 V DC
  • Standard Package: 500
  • Circuit: Single Pole Double Throw
  • Switch Function: On-Mom
  • Actuator Type: Lever Simulated Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Differential Travel: 0.031"
  • Overtravel: 0.047"
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C to 85°C
