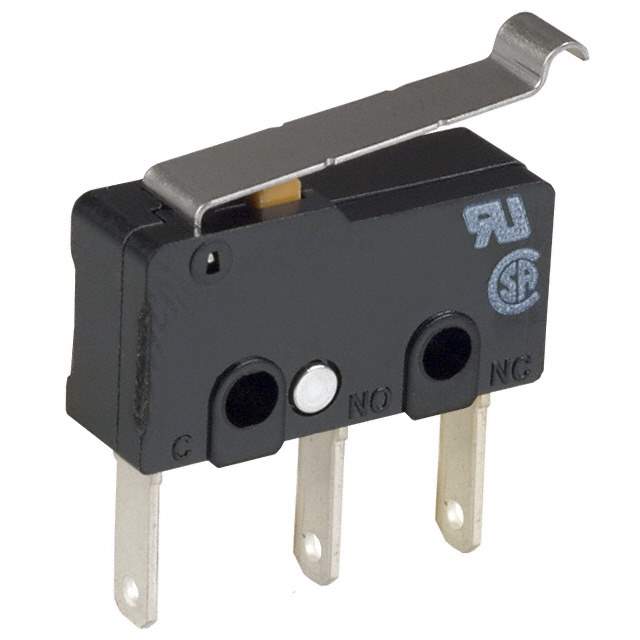

SS-01GL13-ET Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13-ET

Part No SS-01GL13-ET
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
SS-01GL13-ET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 8.158gf
Release Force 1.020gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL13ET,Z4545,SS-01GL13-ET,SS01GL13ETBYOMI,-SS-01GL13-ET
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233579-SS-01GL13-ET
Ultra Librarian 3D Model Ultra Librarian SS-01GL13-ET CAD Model

Description

The SS-01GL13-ET is a SPDT (On-Mom) lever simulated roller limit switch from Omron Electronics Inc-EMC Div.

  • Termination Style: Quick Connect 0.110 inches (2.8mm)
  • Ingress Protection: IP40
  • Voltage Rating: 125V AC and 30V DC
  • Current Rating: 100mA (AC/DC)
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Operating Force: 8.158gf
  • Release Force: 1.020gf
  • Differential Travel: 0.031 inches (0.8mm)
  • Overtravel: 0.047 inches (1.2mm)
  • Operating Position: 0.420 inches (10.7mm)
  • Temperature Range: -25°C to 85°C
  • Mounting: Chassis Mounted
  • Standard Package: 500
