Same model may have multiple batches, images only for reference.

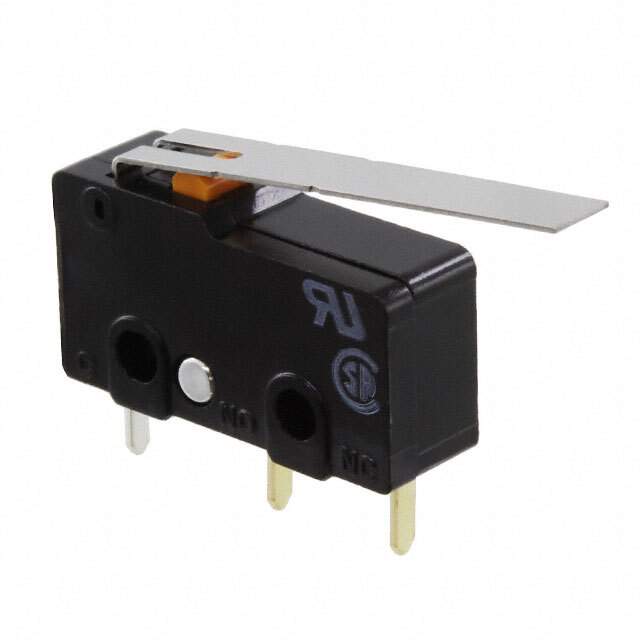

SS-01GL111-FD1 Real Image
Same model may have multiple batches, images only for reference.

SS-01GL111-FD1

Part No SS-01GL111-FD1
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole, Right Angle
Datasheet
SS-01GL111-FD1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 12gf
Release Force 2.039gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL111FD1
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233574-SS-01GL111-FD1
Ultra Librarian 3D Model Ultra Librarian SS-01GL111-FD1 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL111FD1 is a SPDT circuit switch with an operating force of 12gf and a mechanical life of 30,000,000 cycles.

  • Operating Force: 12gf
  • Mechanical Life: 30,000,000 cycles
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Mounting Type: Through Hole, Right Angle
  • Ingress Protection Rating: IP40
  • Voltage Rating for AC: 125 V
  • Voltage Rating for DC: 30 V
  • Standard Package: 500
  • ECCN: EAR99
  • Temperature Range: -25°C ~ 85°C
  • Circuit: SPDT
