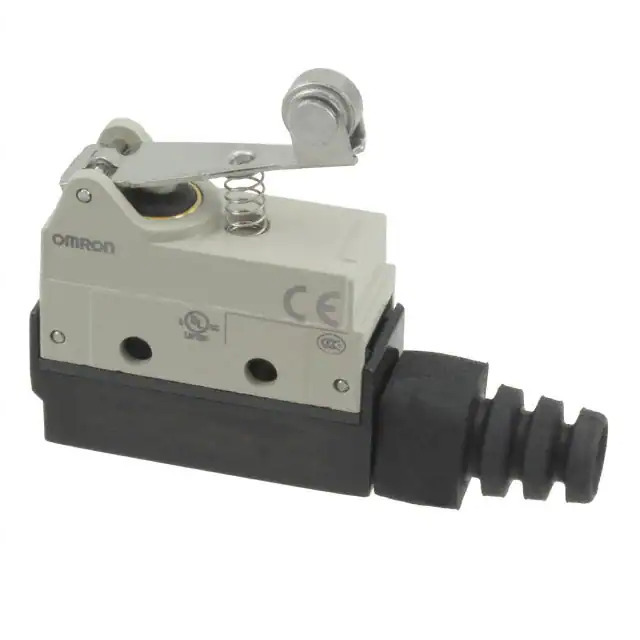

SHL-W255 Omron
Same model may have multiple batches, images only for reference.

SHL-W255

Part No SHL-W255
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Automation and Safety
Series SHL
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 5A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 400gf
Release Force 80gf
Operating Position 1.300" (33.0mm)
Pretravel 0.315" (8.0mm)
Differential Travel 0.098" (2.5mm)
Overtravel 0.118" (3.0mm)
Temperature Range - Operating -10°C ~ 80°C
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1376177-SHL-W255
Ultra Librarian 3D Model Ultra Librarian SHL-W255 CAD Model

Description

The Omron Automation and Safety SHL-W255 is a limit switch designed for various applications by Omron Automation and Safety.

  • Current Rating (AC): 10A
  • Current Rating (DC): 5A
  • Switch Function: On-Mom
  • Voltage Rating (AC): 125V AC
  • Voltage Rating (DC): 30V DC
  • Actuator Type: Lever and roller
  • Ingress Protection: IP67
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 500,000 cycles
  • Mounting Type: Chassis mount
  • Termination Style: Screw terminal
