Same model may have multiple batches, images only for reference.

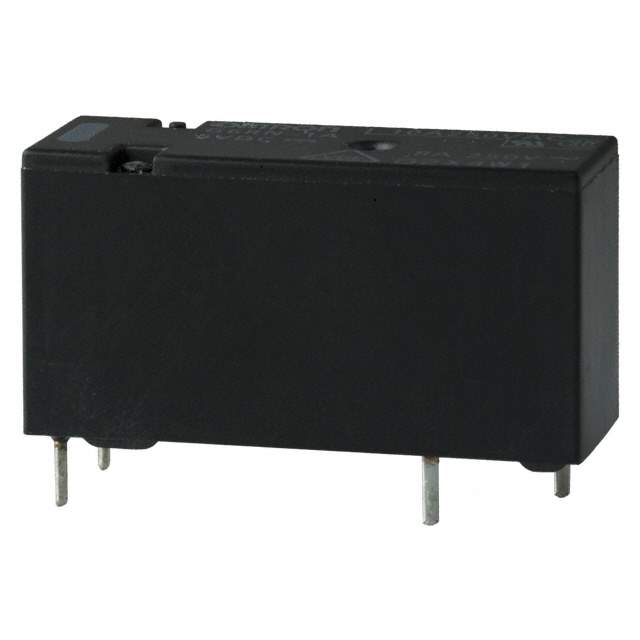

G6RN-1-AP4 DC24 Real Image
Same model may have multiple batches, images only for reference.

G6RN-1-AP4 DC24

Part No G6RN-1-AP4 DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6RN
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 9.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 2.62 kOhms
Base Product Number G6RN
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names G6RN-1-AP4DC24,G6RN1AP4DC24,G6RN8026C,-G6RN-1,G6RN-1-AP4DC24-ND,G6RN1AP424DC,G6RN1AP4 DC24,-G6RN-1-AP4 DC24,Z11637
Standard Package 400
Win Source Part Number 1060356-G6RN-1-AP4 DC24
Ultra Librarian 3D Model Ultra Librarian G6RN-1-AP4 DC24 CAD Model

Description

The Omron G6RN-1-AP4 DC24 is a power relay used in various industrial applications.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: silver alloy
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.62 kOhms
  • Win Source part number: 1060356-G6RN-1-AP4 DC24
