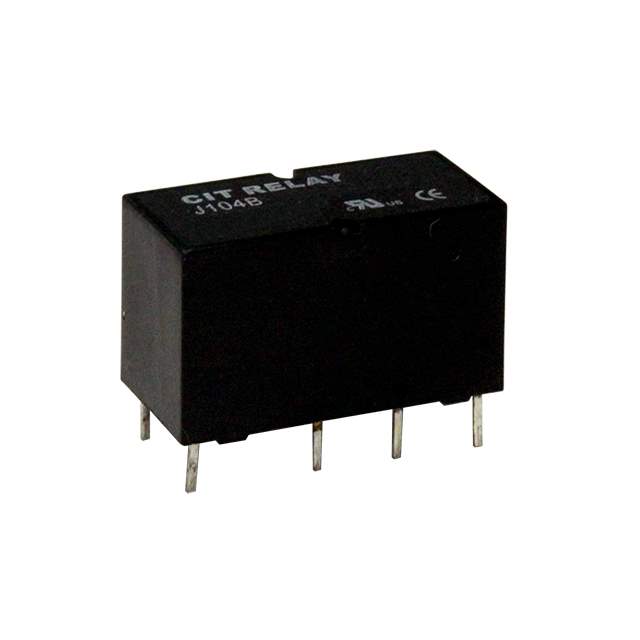

J104B2C5VDC.20S Real Image
Same model may have multiple batches, images only for reference.

J104B2C5VDC.20S

Part No J104B2C5VDC.20S
Manufacturer CIT Relay & Switch
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 3A 5V / General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
Datasheet
J104B2C5VDC.20S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr CIT Relay and Switch
Series J104
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 4.5 ms
Release Time 1.5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi) , Gold (Au)
Relay Type General Purpose
Coil Resistance 125 Ohms
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
California Prop 65 Warning Information
Win Source Part Number 1340043-J104B2C5VDC.20S
Ultra Librarian 3D Model Ultra Librarian J104B2C5VDC.20S CAD Model

Description

The CIT Relay & Switch is a powerful and reliable relay that is perfect for use in various electronic devices.

  • Win Source Part Number: 1340043-J104B2C5VDC.20S
  • Series: J104
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver Nickel (AgNi), Gold (Au)
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 3 A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Type: General Purpose
  • Coil Type: Non-Latching
  • Packaging: Tube
  • Standard Package: 20
  • Operating Temperature: -40°C ~ 85°C
