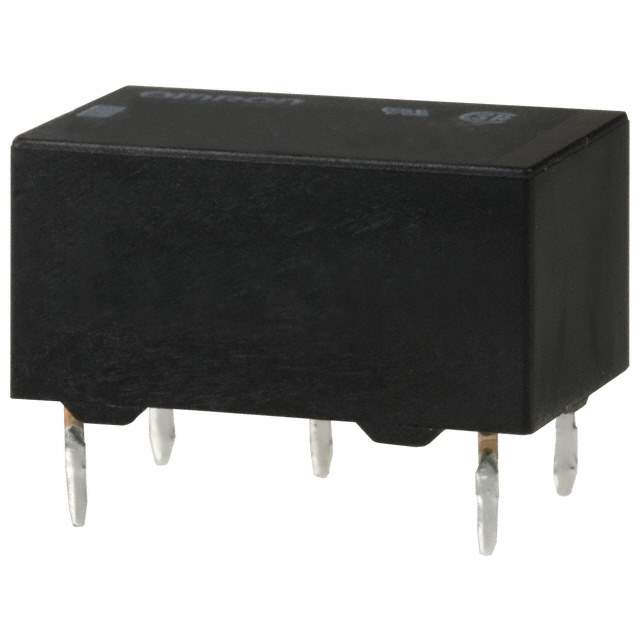

G6E-134P-US DC24 Real Image
Same model may have multiple batches, images only for reference.

G6E-134P-US DC24

Part No G6E-134P-US DC24
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 2A 24VDC / General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6E
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag) , Gold (Au)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G6E
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1339689-G6E-134P-US DC24
Ultra Librarian 3D Model Ultra Librarian G6E-134P-US DC24 CAD Model

Description

The G6E series signal relay from Omron Electronics Inc-EMC Div is a SPDT (1 Form C) contact form relay with a contact rating of 2A.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 2A
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Operate Time: 5ms
  • Release Time: 5ms
  • Switching Voltage: 250VAC and 220VDC
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 70°C
  • Sealed Rating: Fully
  • Package: Tube
