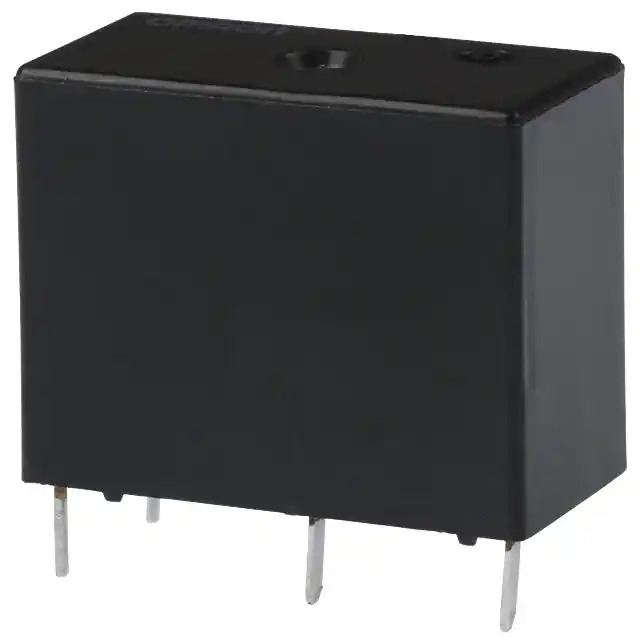

G5Q-1A4 DC24 Omron
Same model may have multiple batches, images only for reference.

G5Q-1A4 DC24

Part No G5Q-1A4 DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5Q
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G5Q
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373403-G5Q-1A4 DC24
Ultra Librarian 3D Model Ultra Librarian G5Q-1A4 DC24 CAD Model

Description

The G5Q-1A4 DC24 is a power relay from Omron Electronics.

  • Series: G5Q
  • Package: Tray
  • Coil Voltage: 24VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 10 A
  • Switching Voltage: 277VAC, 30VDC
  • Coil Current: 8.3 mA
  • Coil Type: Non-Latching
  • Seal Rating: Sealed - Fully
  • Coil Insulation Class: F
