Same model may have multiple batches, images only for reference.

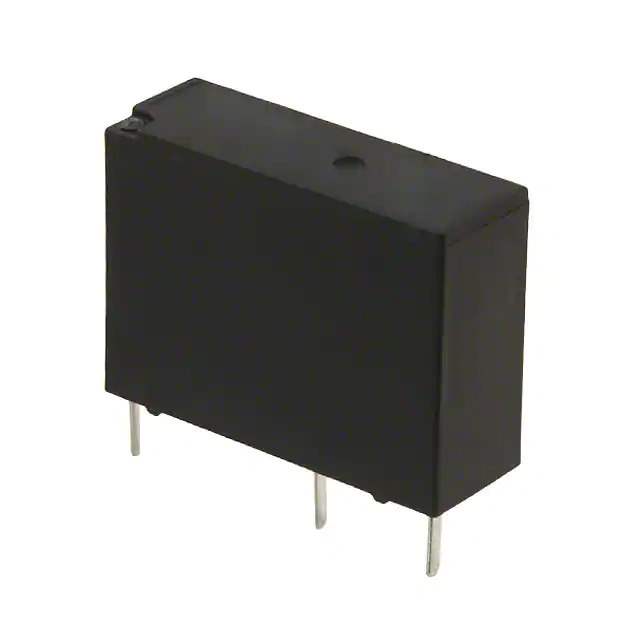

G5NB-1A-E DC18 Real Image
Same model may have multiple batches, images only for reference.

G5NB-1A-E DC18

Part No G5NB-1A-E DC18
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 18V / General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G5NB-E
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 18VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 11.1 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 13.5 VDC
Must Release Voltage 1.8 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Base Product Number G5NB
Standard Package 100 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 919456-G5NB-1A-E DC18
Ultra Librarian 3D Model Ultra Librarian G5NB-1A-E DC18 CAD Model

Description

The G5NB-1A-E DC18 is a power relay from Omron's G5NB-E series.

  • Series: G5NB-E
  • Contact Configuration: SPST-NO (1 Form A)
  • Contact Rating: 5A
  • Coil Voltage: 18VDC
  • Coil Resistance: 1.6 kOhms
  • Termination Style: PC Pin
  • Mounting: Through-Hole
  • Type: General-Purpose
  • Switching Voltage: 250VAC and 30VDC
  • Protection: Sealed-Flux
  • Operating Temperature: -40°C to 70°C
