Same model may have multiple batches, images only for reference.

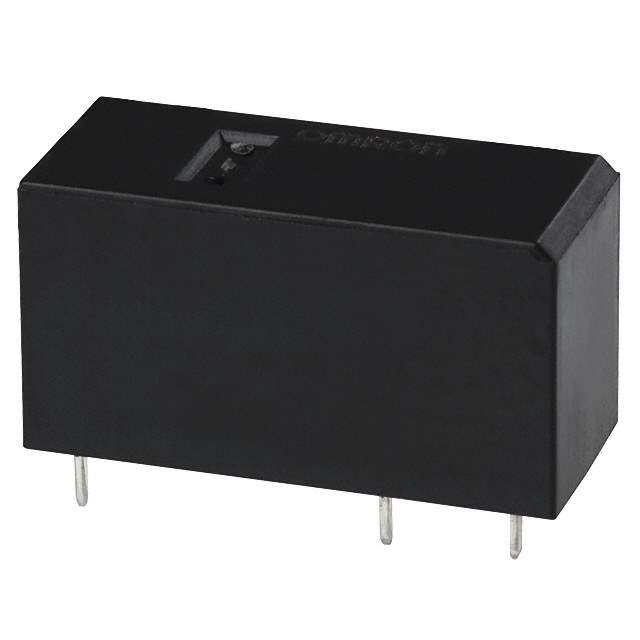

G2RL1424DC Real Image
Same model may have multiple batches, images only for reference.

G2RL1424DC

Part No G2RL1424DC
Manufacturer Omron
Catalog Custom Parts (E - I)
Description General Purpose Relay, G2Rl Series, Power, Non Latching, Spdt, 24 Vdc, 12 A Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 16.7 mA
Coil Power 400 mW
Coil Resistance 1.44 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 12 A
Contact Material Cadmium, Silver, Tin
Depth 12.7 mm
Height 15.7 mm
Length 29 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount PCB
Number of Pins 5
Operate Time 15 ms
Ratings IP67
REACH SVHC Unknown
Relay Type General Purpose
RoHS Compliant
Switching Capacity 2 kW
Switching Current 12 A
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 440 V
Width 12.7 mm
Win Source Part Number 1178041-G2RL1424DC
Categories Custom Parts
Manufacturer Omron
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2RL1424DC CAD Model

Description

The G2RL1424DC by Omron is a general-purpose relay type component that is non-latching and has a coil voltage of 24V.

  • Relay Type: General-Purpose
  • Latching: Non-Latching
  • Coil Voltage: 24V
  • Contact Material: Cadmium, Silver, and Tin
  • Contact Current Rating: 12A
  • Switching Capacity: 2 kW
  • Coil Power: 400mW
  • Switching Current: 12A
  • Length: 29mm
  • Width: 12.7mm
  • Height: 15.7mm
  • Operate Time: 15ms
