Same model may have multiple batches, images only for reference.

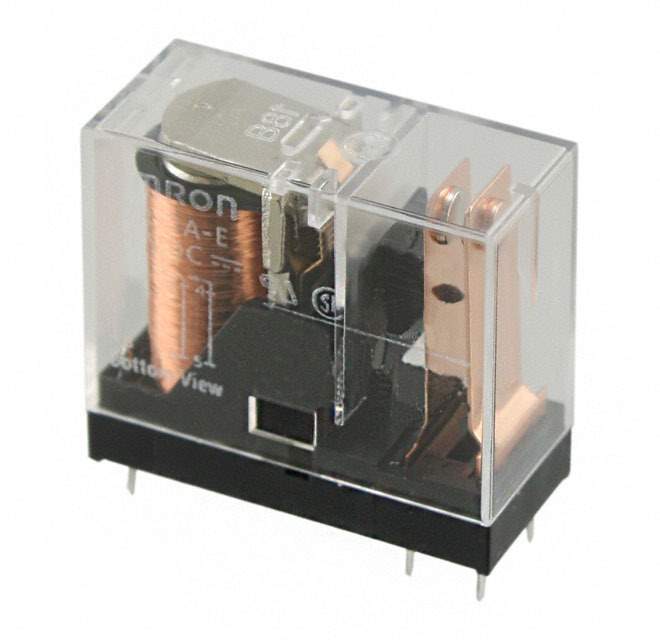

G2R-1A-AP-DC12 Real Image
Same model may have multiple batches, images only for reference.

G2R-1A-AP-DC12

Part No G2R-1A-AP-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V  /  General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
G2R-1A-AP-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2R
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 43.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.8 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 275 Ohms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Names G2R1AAPDC12
Standard Package 100
Win Source Part Number 1042397-G2R-1A-AP-DC12
Ultra Librarian 3D Model Ultra Librarian G2R-1A-AP-DC12 CAD Model

Description

The Omron G2R-1A-AP-DC12 is a general-purpose power relay with a SPST-NO contact form and a contact rating of 10A.

  • Contact Form: SPST-NO
  • Contact Rating: 10A
  • Coil Voltage: 12VDC
  • Coil Resistance: 275 ohms
  • Operate Time: 15ms
  • Release Time: 5ms
  • Switching Voltage: 380VAC and 125VDC max
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 70°C
  • Sealing: Flux Protection
  • Package: Tray
  • Termination Style: PC Pin
  • Contact Material: Silver Alloy
  • Cross-Reference: G2R-1A-T DC12, G2R-1A4-DC12, JW1AFSN-DC12V-TV, JW1AFSN-B-DC12V, JW1AFSN-DC12VG2R-1A-AP DC12, and G2R1AAPDC12
