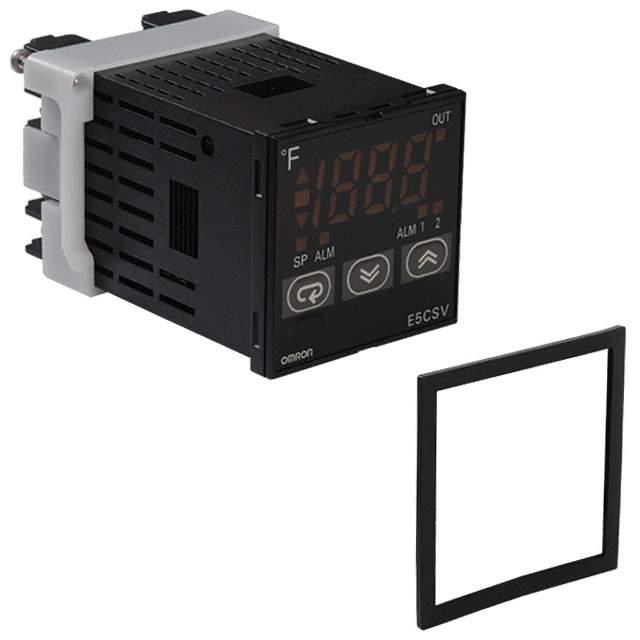

E5CSV-R1T-F AC100-240 Real Image1 E5CSV-R1T-F AC100-240 Real Image2
Same model may have multiple batches, images only for reference.
E5CSV-R1T-F AC100-240 Real Image1 E5CSV-R1T-F AC100-240 Real Image2
E5CSV-R1T-F AC100-240 Real Image1 E5CSV-R1T-F AC100-240 Real Image2
Same model may have multiple batches, images only for reference.

E5CSV-R1T-F AC100-240

Part No E5CSV-R1T-F AC100-240
Manufacturer Omron
Catalog Controllers - Process, Temperature
Description CONTROL TEMP RELAY OUT 100-240V / Temperature Controller (RTD, Type J, K, L, N, R, T, U) 100 ~ 240VAC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Controllers - Process, Temperature
Mfr Omron
Series E5CSV
Package Box
Type Temperature Controller (RTD, Type J, K, L, N, R, T, U)
Input Range -99°C ~ 1700°C
Output Type Relay (2)
Control Method On/Off, Proportional (PID)
Communications -
Number Of Characters Per Row 3.5
Display Type LED - Red Characters
Display Characters - Height 0.531" (13.50mm)
Voltage - Supply 100 ~ 240VAC
Panel Cutout Dimensions Square - 45.00mm x 45.00mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Water Resistant
Features Sensor Fault Detection
Temperature Range - Operating -10°C ~ 55°C
Weight 0.265 lb (120.2 g)
Base Product Number E5CSV
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 9032.10.0090
Standard Package 1 pcs
Win Source Part Number 1381975-E5CSV-R1T-F AC100-240
Ultra Librarian 3D Model Ultra Librarian E5CSV-R1T-F AC100-240 CAD Model

Description

The E5CSV-R1T-F AC100-240 is a temperature controller from the E5CSV series.

  • Thermocouple Support: RTD, type J, K, L, N, R, T, and U
  • Terminal Connections: Screw Terminal
  • Features: Sensor Fault Detection
  • Outputs: Two Relay Outputs
  • Voltage Supply: 100V to 240VAC
  • Operating Temperature: -10°C to 55°C
  • Package: Dust Tight and Water-Resistant IP66 Rated Box
  • Panel Cutout Dimension: 45.00mm x 45.00mm
