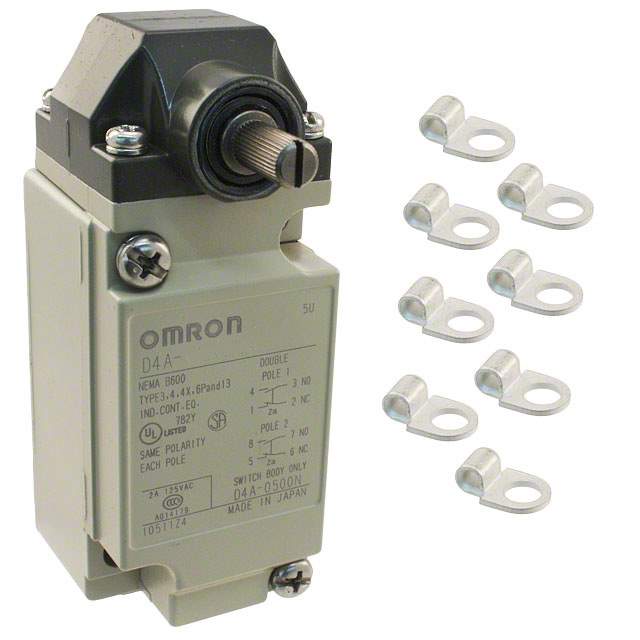

D4A4717N Real Image
Same model may have multiple batches, images only for reference.

D4A4717N

Part No D4A4717N
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description Limit Switch; Roller Lever; Seq Opereration; DPDT; 1/2 Conduit
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 3 A
Electrical Life 750 kcycles
Maximum Operating Temperature 100 °C
Mechanical Life 30 Mcycles
Min Operating Temperature -40 °C
Mount Chassis Mount
Packaging Bulk
Ratings Dust Tight, IP67, Waterproof
RoHS Compliant
Switch Function On-Mom
Termination Screw
Throw Configuration DPDT
Voltage Rating (AC) 125 V
Voltage Rating (DC) 30 V
Win Source Part Number 1045097-D4A4717N
Categories Snap Action,Limit Switches
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian D4A4717N CAD Model

Description

The Omron D4A4717N is a snap action limit switch that is dust tight, waterproof and has an IP67 rating.

  • Current Rating: 3A
  • Electrical Life: 750 kcycles
  • Mechanical Life: 30 Mcycles
  • Switch Function: On-mom
  • Mounting: Chassis mountable
  • Termination: Screw
  • Maximum Operating Temperature: 100 °C
  • Minimum Operating Temperature: -40 °C
  • Voltage Rating: 125 V (AC) and 30 V (DC)
  • Throw Configuration: DPDT
  • RoHS Compliant: Yes

Alternative parts (cross-reference) include D4A-2509-N, D4A-2514-N, D4A-2505-N, GSAA20A1B, and GSAC20CD4A-4717N.
