Same model may have multiple batches, images only for reference.

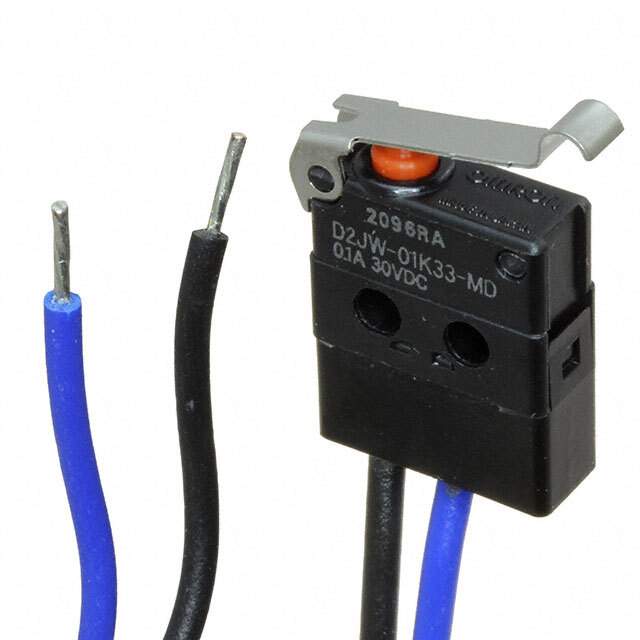

D2JW-01K33-MD Real Image
Same model may have multiple batches, images only for reference.

D2JW-01K33-MD

Part No D2JW-01K33-MD
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description IMERSION-PROOF BASIC SWITCH / Switch SPST-NO Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 97gf
Release Force 20gf
Pretravel 0.218" (5.5mm)
Differential Travel 0.025" (0.6mm)
Overtravel 0.045" (1.1mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.406" (10.3mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2JW
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number D2JW01K33MD,D2JW-01K33-MD-ND,Z8543
Standard Package 20
Win Source Part Number 1323784-D2JW-01K33-MD
Ultra Librarian 3D Model Ultra Librarian D2JW-01K33-MD CAD Model

Description

The D2JW-01K33-MD is a SPST-NO (Off-Mom) lever simulated roller limit switch from Omron Electronics Inc-EMC Div.

  • Termination Style: Wire Leads
  • Ingress Protection: IP67
  • Voltage Rating: 30V DC
  • Current Rating: 100mA (DC)
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Force: 97gf
  • Release Force: 20gf
  • Differential Travel: 0.025 inches (0.6mm)
  • Overtravel: 0.045 inches (1.1mm)
  • Operating Position: 0.406 inches (10.3mm)
  • Operating Temperature: -40°C to 85°C
