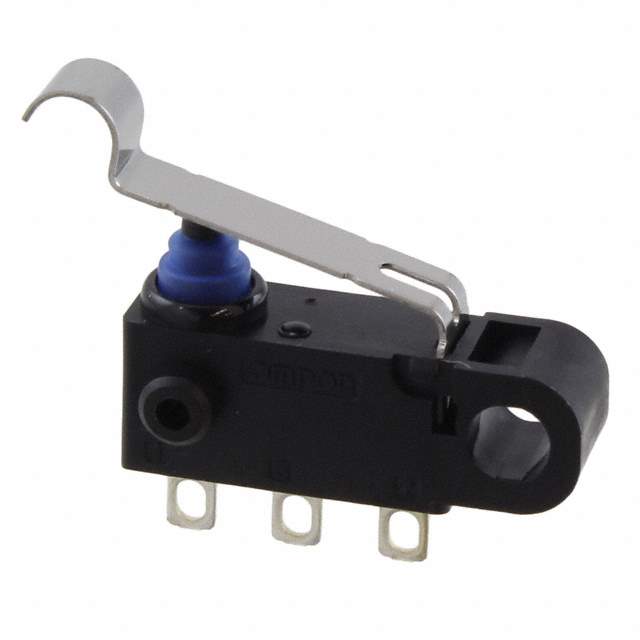

D2HW-C273MRS Real Image
Same model may have multiple batches, images only for reference.

D2HW-C273MRS

Part No D2HW-C273MRS
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NO 100MA 125V / Switch SPST-NO Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 183gf
Release Force 20gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.425" (10.8mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HWC273MRS
Standard Package 240
Win Source Part Number 986861-D2HW-C273MRS
Ultra Librarian 3D Model Ultra Librarian D2HW-C273MRS CAD Model

Description

The Omron Electronics Inc-EMC Div D2HW-C273MRS is a chassis mount switch with a simulated roller lever actuator type.

  • Circuit: Single-Pole, Single-Throw Normally Open (SPST-NO)
  • Switch Function: Off-Mom
  • Voltage Rating: 125V AC, 12V DC
  • Current Rating: 100mA (AC), 2A (DC)
  • Release Force: 20gf
  • Operating Force: 183gf
  • Mechanical Life: 1,000,000 cycles
  • Ingress Protection: IP67 (Dust-tight and Waterproof)
  • ECCN: EAR99
  • Category: Limit Switches
