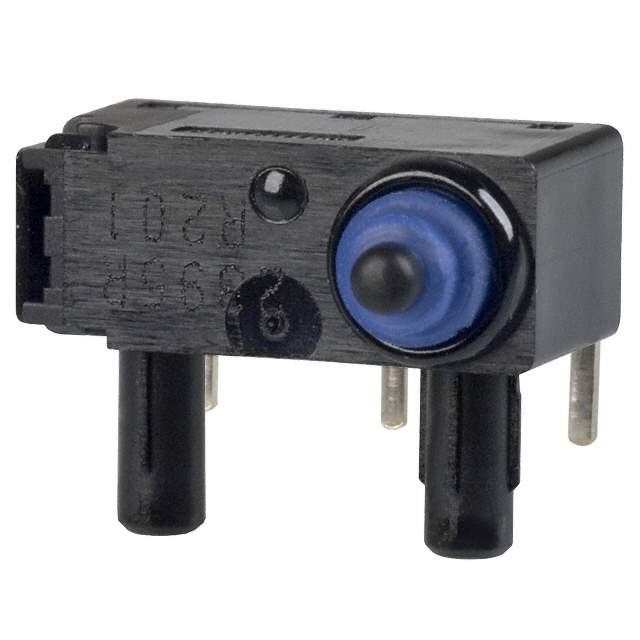

D2HW-BR201H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features Support Posts
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.250" (6.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HWBR201HBYOMR,Z7991,D2HW-BR201H-ND,D2HW-BR201H BY OMR,D2HWBR201H
Standard Package 250
Win Source Part Number 1000164-D2HW-BR201H
Ultra Librarian 3D Model Ultra Librarian D2HW-BR201H CAD Model

Description

The Omron D2HW-BR201H is a limit switch with a circuit of SPDT and a switch function of On-Mom. It has a solder lug termination style and a bulk package.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Termination Style: Solder Lug
  • Package: Bulk
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Voltage Rating (AC): 125 V
  • Voltage Rating (DC): 12 V
  • Standard Package: 250
  • Actuator Type: Round (Pin Plunger)
  • Support Posts: Yes
  • Electrical Life: 100,000 cycles
  • Operating Force: 76gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 10gf
  • Differential Travel: 0.010" (0.25mm)
  • Overtravel: 0.055" (1.4mm)
  • Operating Position: 0.250" (6.4mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.50.7000
  • Manufacturer: Omron Electronics Inc-EMC Div
