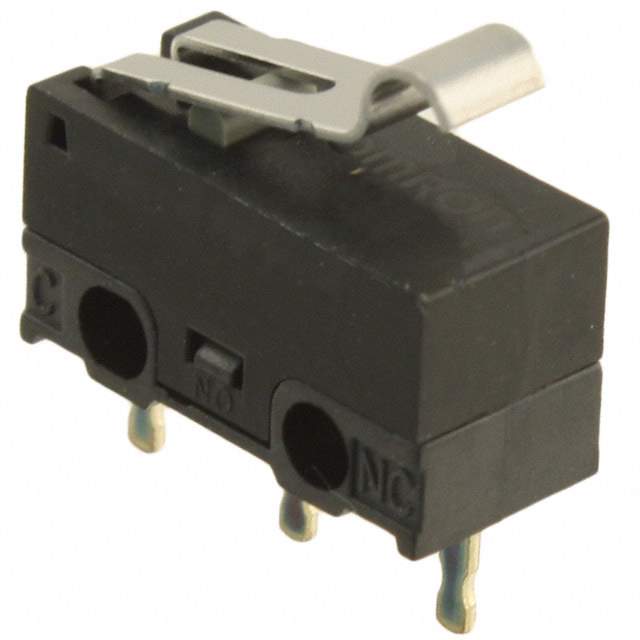

The D2F-01L30-D3 is a snap-action switch manufactured by Omron. It's a compact and reliable switch commonly used for detecting position or presence in various applications.

Applications

• Appliances
• Office equipment
• Vending machines
• Gaming devices
• Industrial equipment

Features

• Compact size
• High reliability
• Long life
• Low operating force
• RoHS compliant

Benefits

• Provides reliable switching performance
• Easy to integrate into various designs
• Suitable for high-volume production
• Reduces maintenance costs

Specifications

The D2F-01L30-D3 has a contact rating of 0.1 A at 30 VDC. It features a lever actuator. The operating force is low, making it suitable for applications where minimal force is required to activate the switch. The mechanical life is rated for millions of operations, ensuring long-term reliability. The switch has a quick connect terminal for easy wiring. The operating temperature range is -25°C to +85°C. It is commonly used as a limit switch, interlock switch, or for general purpose switching applications.

Specifically, this switch is often found in applications where a small, reliable switch is needed to detect a mechanical action.
