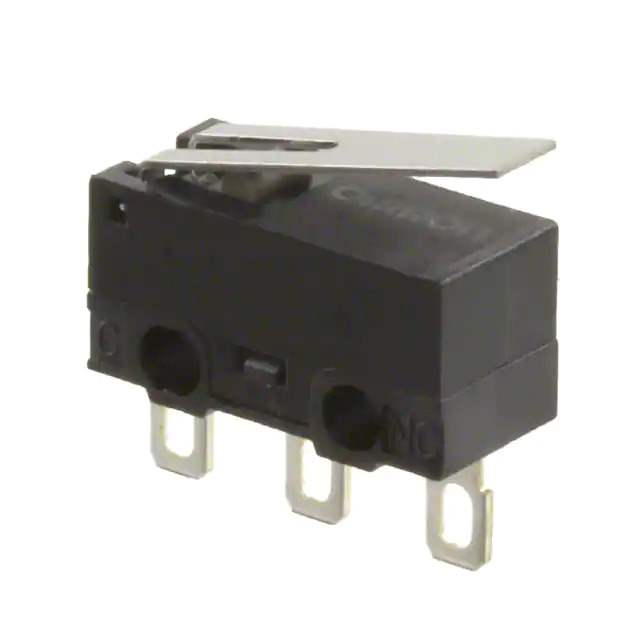

D2F-01L-D3

Part No D2F-01L-D3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 80gf
Release Force 5.099gf
Operating Position 0.268" (6.8mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583453-D2F-01L-D3
Ultra Librarian 3D Model Ultra Librarian D2F-01L-D3 CAD Model

Description

The Omron 583453-D2F-01L-D3 is a SPDT limit switch from the D2F series.

  • Termination Style: solder lug
  • Ingress Protection: IP40
  • Voltage Rating: 30V DC
  • Current Rating: 100mA DC
  • Switch Function: on-mom
  • Actuator Type: lever, straight
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Operating Force: 80gf
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.022" (0.55mm)
  • Operating Position: 0.268" (6.8mm)
  • Mounting: chassis mounted
  • Operating Temperature Range: -40°C to 85°C
  • Status: active
  • Series: D2F
