D2A-1120
Same model may have multiple batches, images only for reference.

D2A-1120

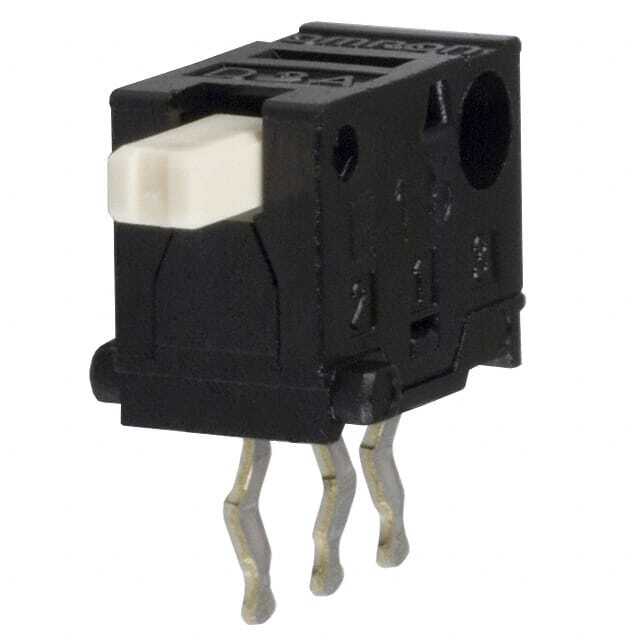

Part No D2A-1120
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Through Hole, Right Angle
Datasheet
D2A-1120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2A
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Overtravel Plunger
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP00
Operating Force 50gf
Release Force 5.099gf
Operating Position 0.319" (8.1mm)
Temperature Range - Operating -10°C ~ 80°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number D2A
Standard Package 2,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 848582-D2A-1120
Ultra Librarian 3D Model Ultra Librarian D2A-1120 CAD Model

Description

The Omron 848582-D2A-1120 is a limit switch from the D2A series.

  • Series: D2A
  • Termination Style: PC Pin
  • Mounting Type: Through-Hole, Right-Angle
  • Circuit: SPDT (Single-Pole, Double-Throw)
  • Switch Function: On-Mom
  • Actuator Type: Overtravel Plunger
  • Voltage Rating: 30VDC
  • Operating Force: 50gf
  • Mechanical Life: 50,000 Cycles
  • Ingress Protection: IP00
  • Operating Temperature Range: -10°C to 80°C
