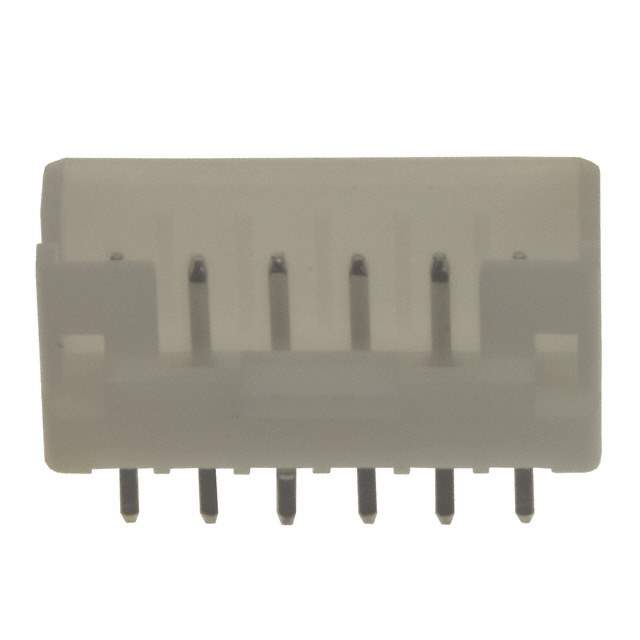

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series High Performance Interconnect (HPI)
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.132" (3.35mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.239" (6.07mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 1735446
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 17354466,-1735446-6-SI,A100100,2266-1735446-6
Standard Package 350
Win Source Part Number 1123758-1735446-6
Ultra Librarian 3D Model Ultra Librarian 1735446-6 CAD Model

Description

The TE Connectivity AMP Connectors 1735446-6 is a high-performance interconnect component that is designed to be used in various electronic applications.

  • Supply Voltage: 2 V to 6 V
  • Operating Temperature Range: -25°C to 85°C
  • Board to Cable/Wire Style: Yes
  • Shrouding: Shrouded-3 wall
  • Contact Finish (Mating and Post): Tin
  • Insulation Material: Thermoplastic
  • Package: Bulk
  • Standard Package: 350
