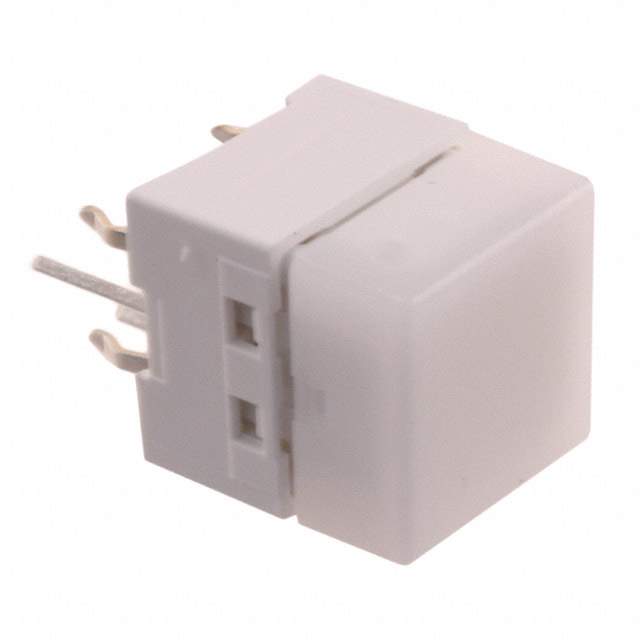

Same model may have multiple batches, images only for reference.

B3W-9000-Y1N

Name: B3W-9000-Y1N
Brand: Omron
SKU: 981578
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B3W-9000-Y1N
Manufacturer	Omron
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Omron Electronics Inc-EMC Div
Series	B3W-9
Package	Tray
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Square Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	10.20mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	10.00mm x 10.00mm
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	2.4 VDC
Operating Force	160gf
Features	Sealed - Fully
Temperature Range - Operating	-25°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	1,000,000 Cycles
Base Product Number	B3W
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	B3W-9000-Y1N-ND,SW1041,B3W9000Y1N
Standard Package	300
Win Source Part Number	981578-B3W-9000-Y1N
Ultra Librarian 3D Model	Ultra Librarian B3W-9000-Y1N CAD Model

Description

The Omron B3W-9000-Y1N is a tactile switch manufactured by Omron Electronics Inc-EMC Div.

Switch Function: Off-Mom
Circuit: SPST-NO
Actuator Type: Square Button
Illumination Type: LED
Illumination Color: Yellow
Operating Force: 160gf
Mechanical Life: 1,000,000 cycles
Switch Travel: 0.25mm
Illumination Voltage: 2.4 VDC
Temperature Range: -25°C to 70°C
