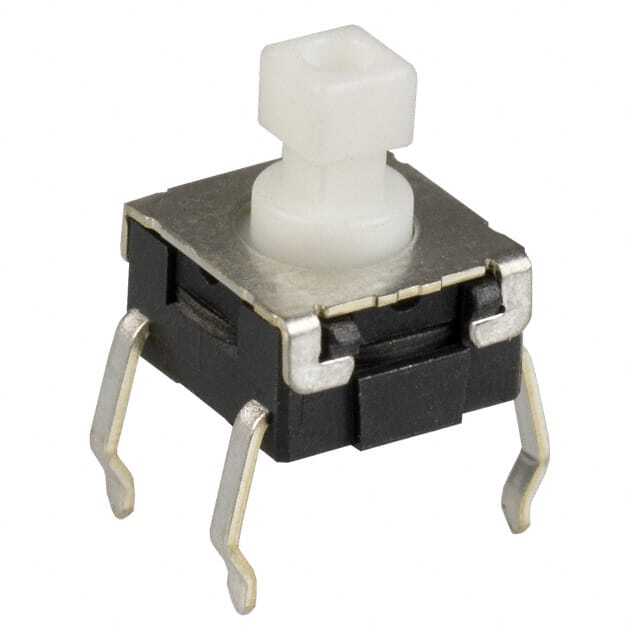

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3W
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 300,000 Cycles
Base Product Number B3W
Standard Package 1,500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 863087-B3W-1050
Ultra Librarian 3D Model Ultra Librarian B3W-1050 CAD Model

Description

The 863087-B3W-1050 is a tactile switch from Omron's B3W series.

  • Termination Style: PC pin
  • Package: Bulk
  • Ingress Protection: IP67
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Plunger for cap
  • Switch Travel: Not specified
  • Contact Rating: 0.05A @ 24VDC
  • Actuator Orientation: Top actuated
  • Outline Dimensions: 6.50mm x 6.00mm
  • Illumination: Non-illuminated
  • Operating Force: 160gf
  • Mechanical Life: 300,000 cycles
  • Mounting: Through hole
  • Operating Temperature: -25°C to 70°C
